PLAN 72-897

Key Specs

5385
sq ft

5
Beds

3.5
Baths

3
Floors

3
Garages

Select Plan Set Options

What's included?

	Additional Construction Sets $54.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License $576.00 Additional Use License.
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $180.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List $76.50 A list of building supplies needed to construct the infrastructure of your new house.
	Mirror Reversed Sets $54.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License $1152.00 Unlimited Use License.

Subtotal

NOW $1267.20

You save $140.80

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-803-2251

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-803-2251

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-803-2251

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 72-897

Key Specs

5385
sq ft

5
Beds

3.5
Baths

3
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Modify This Plan

Plan Description

This home is a lovely example of classic Queen Anne architecture. Its floor plan offers: a gathering room with fireplace, a study with an octagonal window area, a formal dining room and a kitchen with attached breakfast room. Bedrooms on the second floor include three family bedrooms and a grand master suite. On the third floor are a guest room with private bath and sitting room and a game room with attached library.

Floor Plans

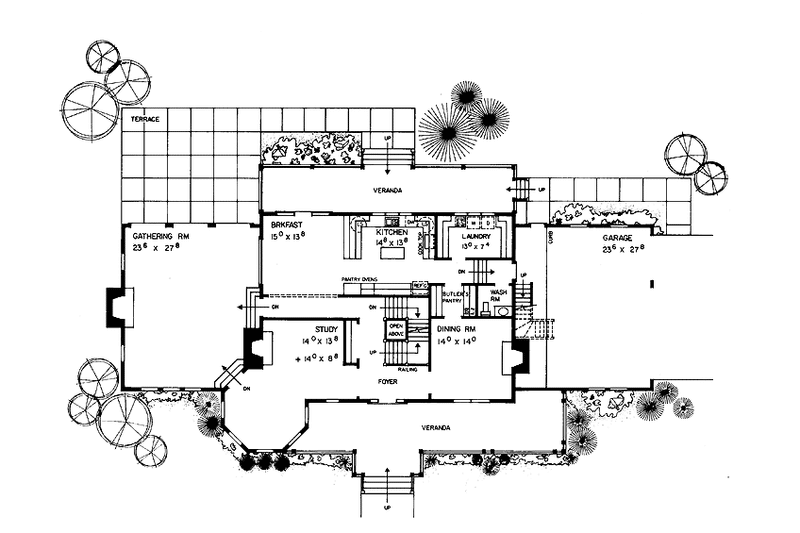

Floor Plan - Main Floor

Reverse

Victorian Floor Plan - Main Floor Plan #72-897

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

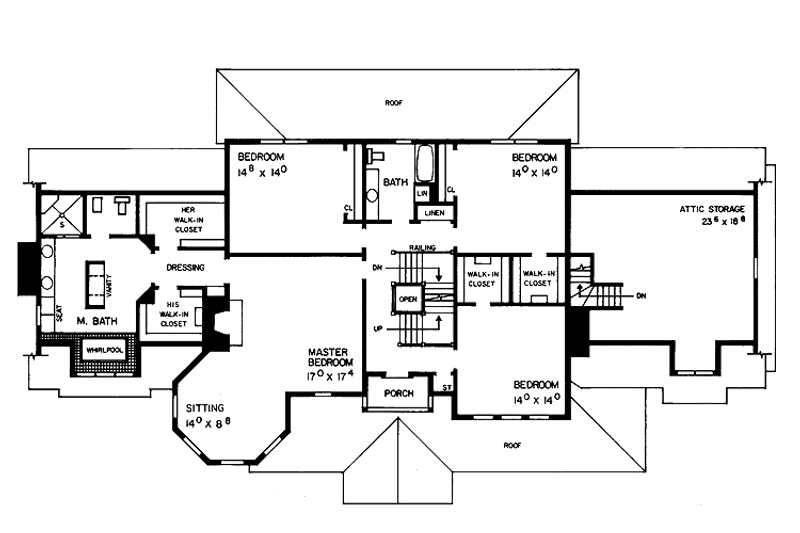

Floor Plan - Upper Floor

Reverse

Victorian Floor Plan - Upper Floor Plan #72-897

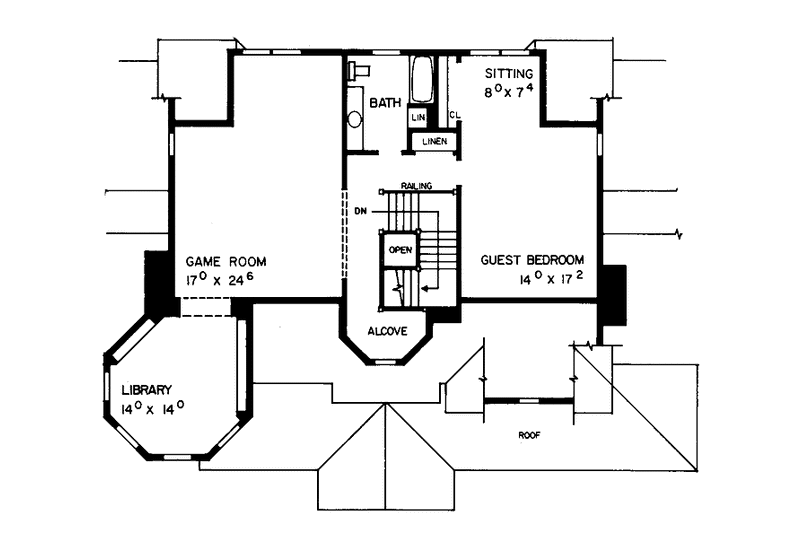

Floor Plan - Other Floor

Reverse

Victorian Floor Plan - Other Floor Plan #72-897

Full Specs & Features

Dimension

Depth : 53' 4"
Height : 42'
Width : 92'

Area

First Floor: 2248 sq/ft height 10'
Second Floor: 2020 sq/ft
Third Floor: 1117 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Guest Suite
Split Bedrooms

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony
Courtyard

Rooms

3rd BR Closet:

41 sq/ft width 6' 10" x depth 6' 1"

Basement Foundation:

1567 sq/ft width 42' x depth 37' 4"

Bathroom 2:

87 sq/ft width 9' x depth 9' 8"

Bathroom 3:

87 sq/ft width 9' x depth 9' 8"

Bedroom 2:

205 sq/ft width 14' 8" x depth 14'

Bedroom 2 Closet:

20 sq/ft width 2' 1" x depth 9' 8"

Bedroom 3:

196 sq/ft width 14' x depth 14'

Bedroom 3 Closet:

20 sq/ft width 2' 1" x depth 9' 8"

Bedroom 4:

196 sq/ft width 14' x depth 14'

Bedroom 4 Closet:

41 sq/ft width 6' 10" x depth 6' 1"

Bedroom 5:

240 sq/ft width 14' x depth 17' 2"

Bonus Room - Finished:

121 sq/ft width 14' x depth 8' 8"

Breakfast Room:

205 sq/ft width 15' x depth 13' 8"

Den/Office or Bedroom 1:

196 sq/ft width 14' x depth 14'

Dining Room:

196 sq/ft width 14' x depth 14'

Foyer:

71 sq/ft width 12' x depth 5' 11"

Game Room:

416 sq/ft width 17' x depth 24' 6"

Garage:

650 sq/ft width 23' 6" x depth 27' 8"

Gathering Room:

650 sq/ft width 23' 6" x depth 27' 8"

Kitchen:

200 sq/ft width 14' 8" x depth 13' 8"

Laundry Room:

95 sq/ft width 13' 1" x depth 7' 4"

Master Bathroom:

267 sq/ft width 12' x depth 22' 4"

Master Bedroom:

294 sq/ft width 17' x depth 17' 4"

Master Closet:

74 sq/ft width 11' 1" x depth 6' 9"

Porch - Rear:

352 sq/ft width 8' x depth 44'

Storage:

438 sq/ft width 23' 6" x depth 18' 8"

Study:

147 sq/ft width 17' x depth 8' 8"

Wash Room:

31 sq/ft width 6' x depth 5' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-877-803-2251

Plan Set

PDF Set : $1267.20	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1366.20	5 printed plan sets mailed to you.
8 Copy Set : $1465.20	8 printed plan sets mailed to you.
Reproducible Set : $1465.20	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $2534.40	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : $54.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License : $576.00	Additional Use License.
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $180.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $76.50	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $54.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License : $1152.00	Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
