PLAN 124-935

Key Specs


2236
sq ft

1
Beds

1
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Plan Description


This Craftsman style 2 car garage plan has two 10' wide and 8' tall garage doors. Behind the garage is a generously sized hobby room with stairs that lead to the apartment above. At the top of the stairs is a small landing and door that leads into the vaulted kitchen with a washer and dryer tucked to the right along with space for a wine cooler. The vaulted great room features a fireplace and a set of double doors that lead to the balcony. Also upstairs is a vaulted office and bedroom along with a full bathroom including a soaking tub.

Floor Plans

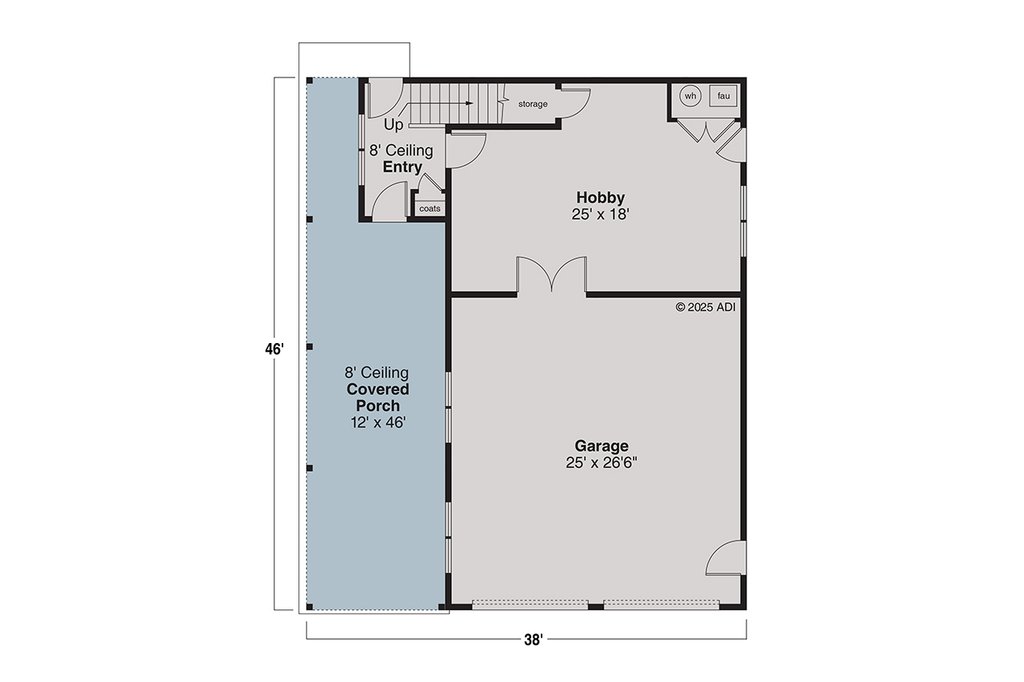

Floor Plan - Main Floor Plan
Reverse
Save Craftsman Floor Plan - Main Floor Plan Plan #124-935
Floor Plan - Main Floor Plan
Reverse
Save Craftsman Floor Plan - Main Floor Plan Plan #124-935

Full Specs & Features


Dimension
Depth : 46'
Height : 25' 3"
Width : 38'
Area
Garage : 1290 sq/ft
Upper Floor : 946 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 9'
Roof
Primary Pitch : 12/12
Roof Framing : Stick
Roof Load : 65
Exterior Wall Framing
Exterior Wall Finish : Batt & Board Siding/Shingle
Framing : 2x6
Bedroom Features
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Garage Features
Detached Garage
Front Entry Garage
Outdoor Spaces
Covered Front Porch

What's Included In This Plan Set


See a sample plan set Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.

Plan Set

5 Copy Set :
$845.00
5 printed plan sets mailed to you.
PDF Print Set :
$845.00
A non-modifiable, print only PDF file
8 Copy Set :
$995.00
8 printed plan sets mailed to you.
PDF Master Set :
$1660.00
An unlocked, modifiable PDF file
CAD Set :
$1845.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
