Key Specs
2229
sq ft
3
Beds
3.5
Baths
1
Floors
3
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 53-716
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 65'
Height : 22' 8"
Width : 65'
Area
Garage : 1497 sq/ft
Main Floor : 2229 sq/ft
Patios : 435 sq/ft
Porch : 289 sq/ft
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 12/4
Roof Framing : TRUSS
Roof Load : 47 p.s.f.
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : double wall
Framing : 2x6
Insulation : r-23
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Oversized Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

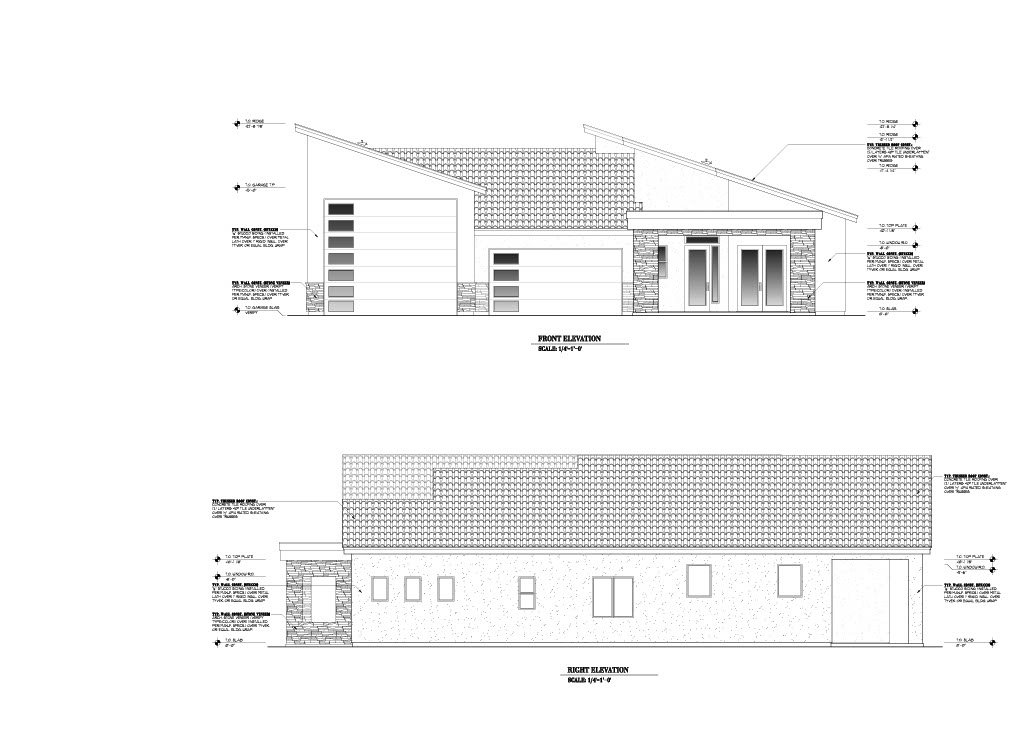

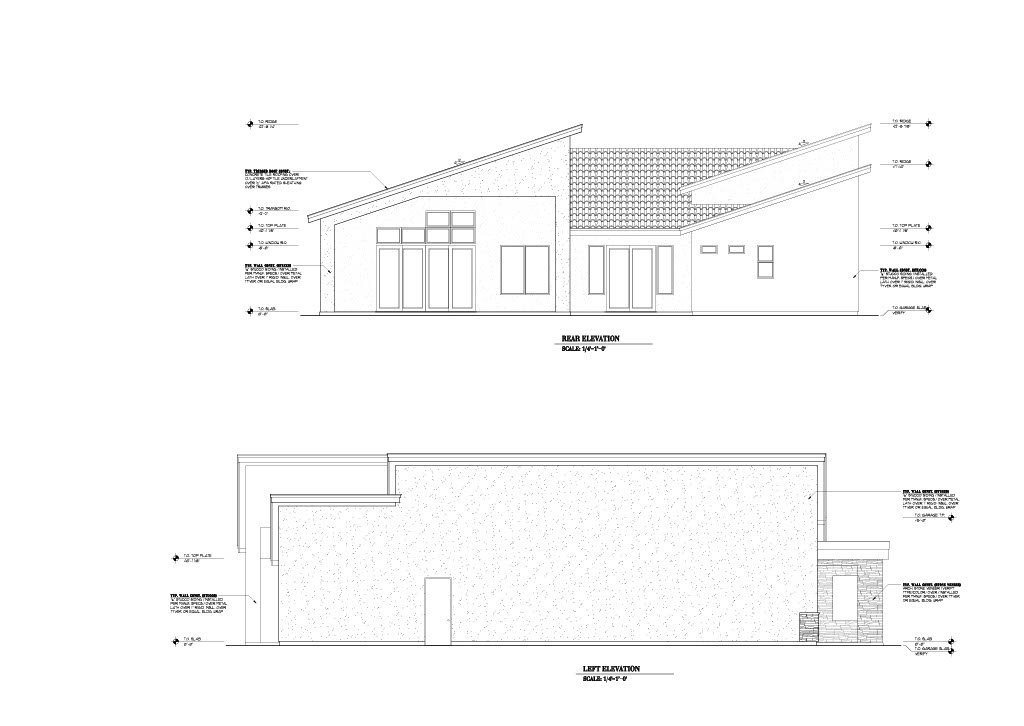

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
$1595.00
$2495.00
$2495.00
$4090.00
$4458.00
$4458.00
$4458.00
Foundation
$0.00
$0.00
$275.00
Framing
$0.00
$0.00
Additional Options
$250.00
$165.00
$295.00
$39.00
$165.00
$4458.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
