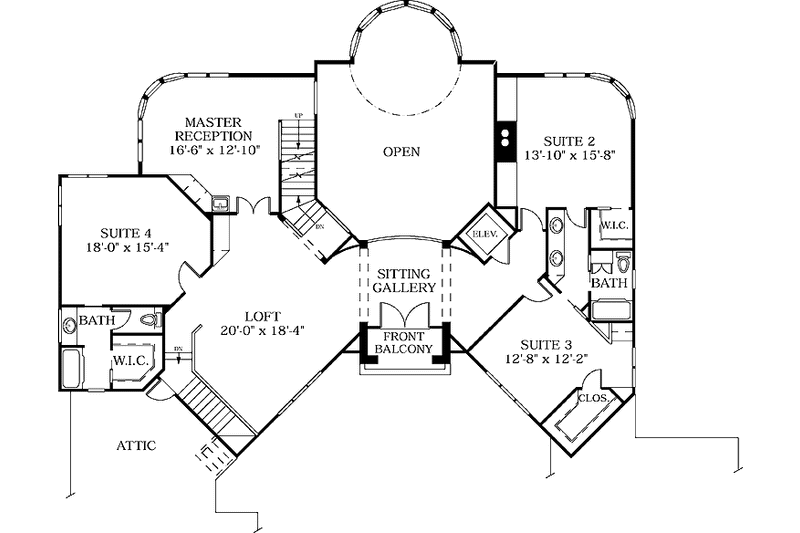

Bedroom 2:
216 sq/ft width 13' 10" x depth 15' 8"
Bedroom 3:
154 sq/ft width 12' 8" x depth 12' 2"
Bedroom 4:
275 sq/ft width 18' x depth 15' 4"

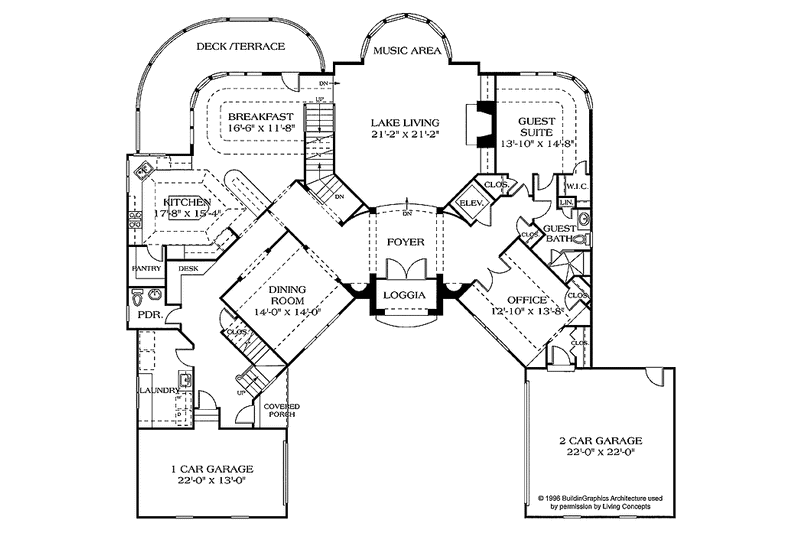

Breakfast Room:
192 sq/ft width 16' 6" x depth 11' 8"
Dining Room:
196 sq/ft width 14' x depth 14'
Garage:
286 sq/ft width 22' x depth 13'
Garage Two:
484 sq/ft width 22' x depth 22'
Grand Room:
448 sq/ft width 21' 2" x depth 21' 2"
Kitchen:
270 sq/ft width 17' 8" x depth 15' 4"
Loft:
366 sq/ft width 20' x depth 18' 4"
Office:
175 sq/ft width 12' 10" x depth 13' 8"
PDF Set : $2040.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Reproducible Set : $2040.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Wood 2x4: $0.00 |
Wood 2x4 |
Additional Construction Sets : $51.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
Lighting Design : $170.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
Mirror Reversed Sets : $42.50 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
