Plan Description

Looking like a French Provincial castle, this estate recalls the grandeur of an era of grace and charm. Nothing is left to chance in the elegant floor plan. A spectacular entry reveals double curved staircases with a columned gallery beyond. The great room is sunken a few steps and has a warming hearth and connecting lounge. The family room is similarly warmed by a fireplace and has access to the rear yard. Boasting a quaint sun room, the master suite share the left wing of the home with an office or library. Upstairs are four sizable bedrooms, each with its own bath and balcony access. The second-floor gallery overlooks the great room on one side and the entry foyer on the other. A large living area over the garage is designated as carriage house living space and could be defined as in-law quarters or office space.

Floor Plans

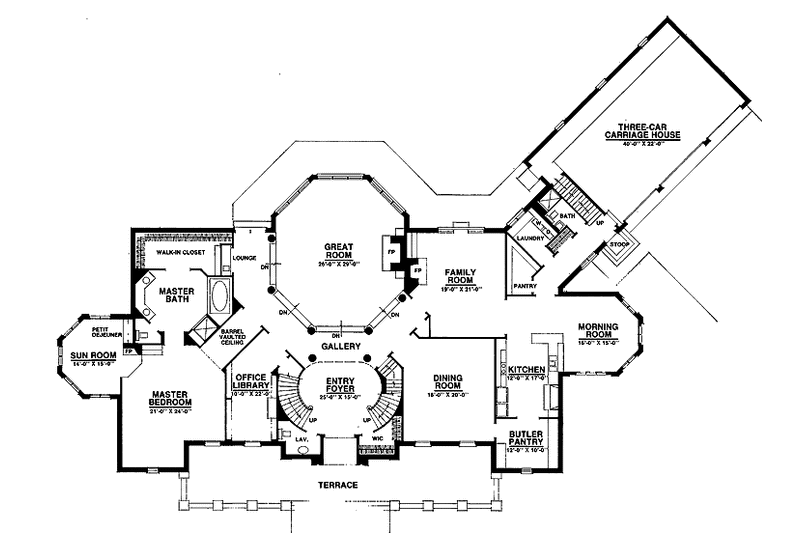

Floor Plan - Main Floor

Reverse

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

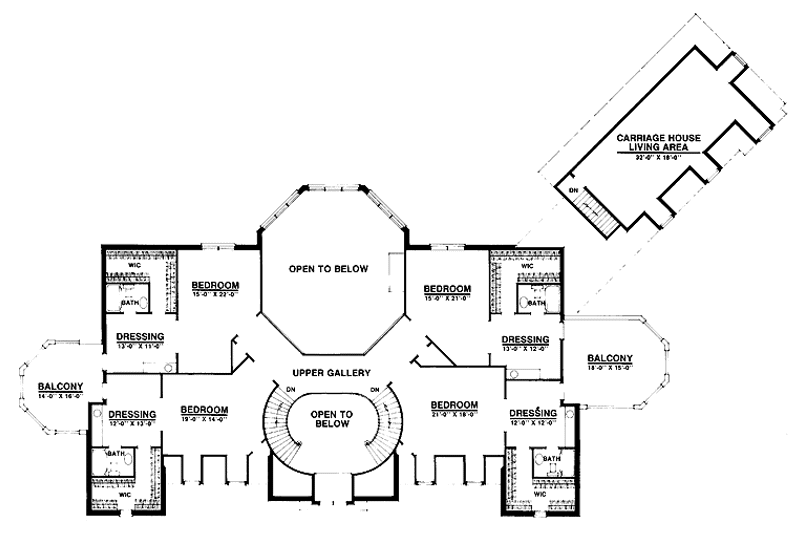

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 99' 3"
Height : 34'
Width : 138' 8"

Area

Bonus: 583 sq/ft
First Floor: 4613 sq/ft
Second Floor: 3446 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room

Rooms

3rd BR Closet:

72 sq/ft width 6' x depth 12'

Bathroom 2:

37 sq/ft width 7' 6" x depth 5'

Bedroom 2:

252 sq/ft width 18' x depth 14'

Bedroom 2 Closet:

72 sq/ft width 6' x depth 12'

Bedroom 3:

326 sq/ft width 14' 9" x depth 22' 2"

Bedroom 3 Closet:

72 sq/ft width 6' x depth 12'

Bedroom 4:

326 sq/ft width 14' 9" x depth 22' 2"

Bedroom 4 Closet:

72 sq/ft width 6' x depth 12'

Bedroom 5:

252 sq/ft width 18' x depth 14'

Bonus Room - Finished:

437 sq/ft width 33' 3" x depth 13' 2"

Breakfast Room:

210 sq/ft width 15' x depth 14'

Den/Office or Bedroom 1:

123 sq/ft width 9' 3" x depth 13' 4"

Dining Room:

370 sq/ft width 18' 2" x depth 20' 5"

Foyer:

497 sq/ft width 23' 4" x depth 21' 4"

Garage:

814 sq/ft width 37' x depth 22'

Gathering Room:

761 sq/ft width 29' 8" x depth 25' 8"

Hall:

width 6' x depth 0"

Hall Closet:

45 sq/ft width 6' 6" x depth 7'

Kitchen:

221 sq/ft width 17' x depth 13'

Master Bathroom:

205 sq/ft width 14' 4" x depth 14' 4"

Master Bedroom:

537 sq/ft width 22' x depth 24' 5"

Master Closet:

112 sq/ft width 16' x depth 7'

Powder Room:

42 sq/ft width 6' x depth 7'

Utility Room:

47 sq/ft width 6' 4" x depth 7' 6"
