Key Specs
5106
sq ft
5
Beds
4.5
Baths
2
Floors
4
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 417-435
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description

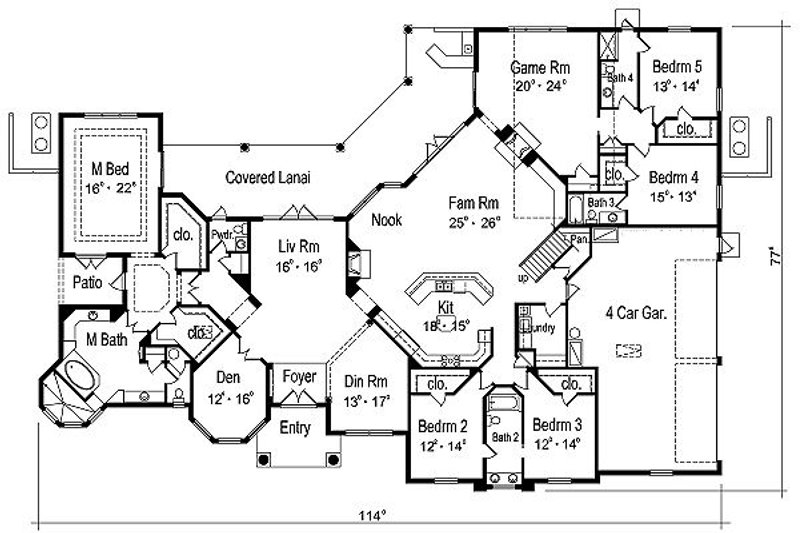

Floor Plans
Full Specs & Features
Dimension
Depth : 77' 8"
Height : 30'
Width : 114'
Area
First Floor: 5106 sq/ft
Second Floor: 508 sq/ft
Ceiling
Main Ceiling : 12'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Concrete block
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Play Flex Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
38 sq/ft width 9' 8" x depth 4'
Bathroom 2:
97 sq/ft width 6' x depth 16' 4"
Bathroom 3:
51 sq/ft width 9' 8" x depth 5' 4"
Bedroom 2:
170 sq/ft width 12' 2" x depth 14'
Bedroom 2 Closet:
40 sq/ft width 10' x depth 4'
Bedroom 3:
165 sq/ft width 12' x depth 13' 9"
Bedroom 3 Closet:
40 sq/ft width 10' x depth 4'
Bedroom 4:
199 sq/ft width 15' x depth 13' 4"
Bedroom 4 Closet:
25 sq/ft width 4' 4" x depth 6'
Bedroom 5:
186 sq/ft width 13' x depth 14' 4"
Bedroom 5 Closet:
40 sq/ft width 10' x depth 4'
Bonus Room - Finished:
408 sq/ft width 16' x depth 25' 6"
Breakfast Room:
100 sq/ft width 10' x depth 10'
Dining Room:
234 sq/ft width 13' x depth 18'
Foyer:
80 sq/ft width 8' 8" x depth 9' 4"
Game Room:
480 sq/ft width 20' x depth 24'
Garage:
813 sq/ft width 20' x depth 40' 8"
Gathering Room:
693 sq/ft width 26' 8" x depth 26'
Hall Bathroom:
32 sq/ft width 6' 6" x depth 5'
Kitchen:
362 sq/ft width 24' 2" x depth 15'
Laundry Room:
82 sq/ft width 8' x depth 10' 4"
Living Room:
194 sq/ft width 16' x depth 12' 2"
Master Bathroom:
329 sq/ft width 21' x depth 15' 8"
Master Bedroom:
362 sq/ft width 16' x depth 22' 8"
Master Closet:
128 sq/ft width 13' 6" x depth 9' 6"
Porch - Rear:
366 sq/ft width 30' 6" x depth 12'
Study:
217 sq/ft width 12' 4" x depth 17' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1840.00
$2000.00
$2120.00
$3680.00
$720.00
Foundation
$0.00
Framing
$0.00
Additional Options
$40.00
$80.00
$31.20
$160.00
$24.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
