PLAN 456-36

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$50.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$1595.00
Also order by phone: 1-877-803-2251
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 456-36

Key Specs


4948
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Plan Description


The stunning home is an affordable craftsman styled ranch house plan with 3 bedrooms and 2.5 baths. It features 10-11 ft high ceilings throughout and a huge great room bathed in daylight from front and rear. The floor plan is a split bedroom style with a private master suite that includes a compartmented bath and huge walk-in closet. The two bedrooms on the other side share a bath. The kitchen includes a very large breakfast bar for serving food and casual dining. There is a spacious covered porch adjacent to the great room and dining area. Plans include an optional bonus room on the second floor and an optional walk-out basement.

Floor Plans

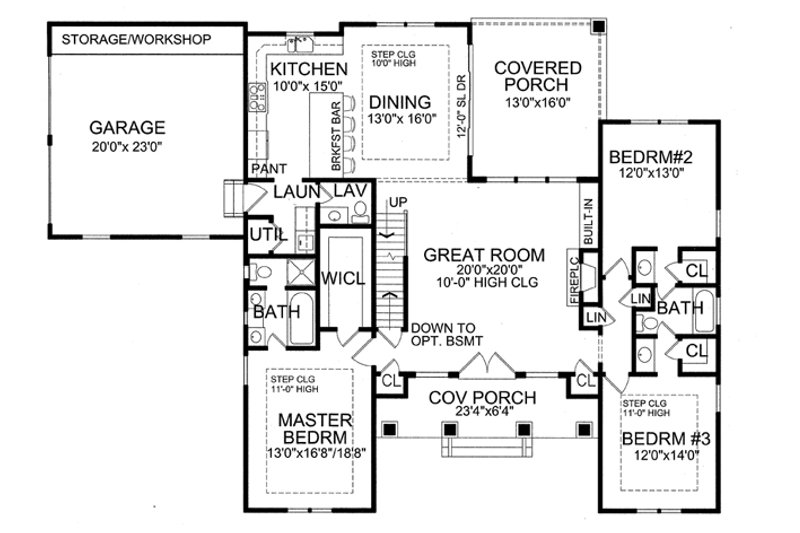

Floor Plan - Main Floor Plan
Reverse
Save

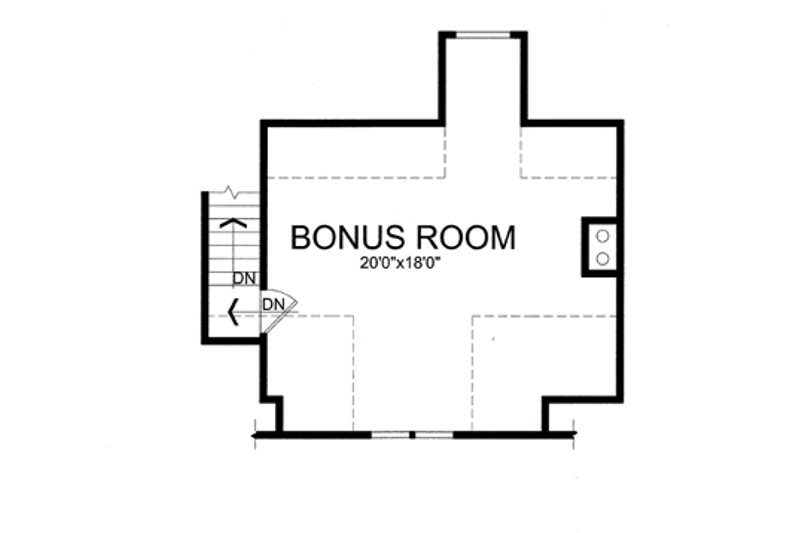

Floor Plan - Upper Floor Plan
