Key Specs
4902
sq ft
4
Beds
4.5
Baths
2
Floors
2
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 27-459
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 66' 4"
Height : 35' 2"
Width : 75' 4"
Area
Garage : 614 sq/ft

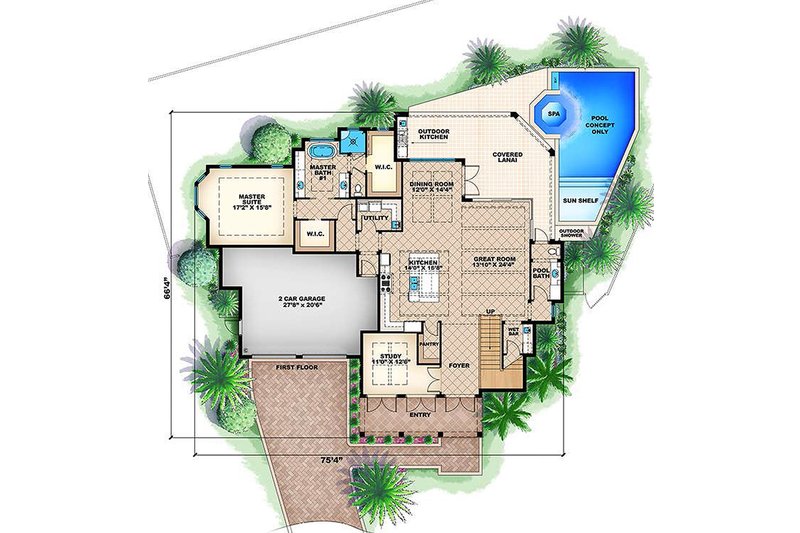

Main Floor : 2351 sq/ft
Patios : 464 sq/ft

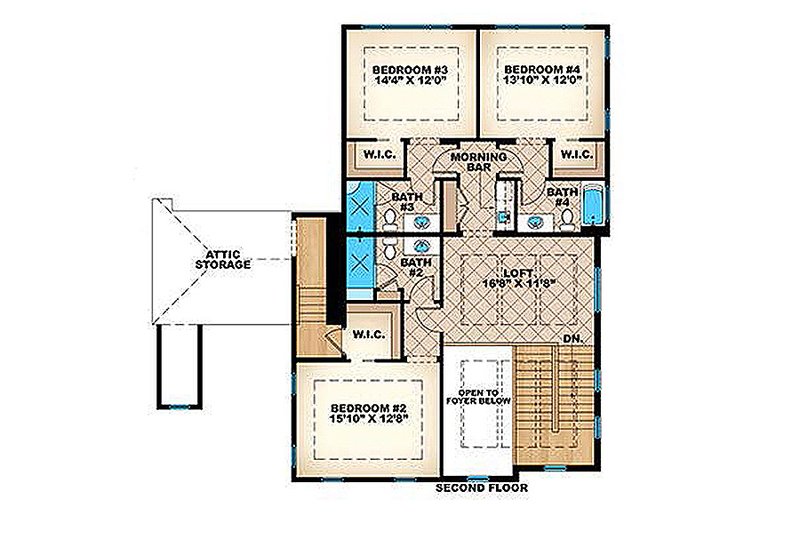

Upper Floor : 1273 sq/ft
Ceiling
Ceiling Details : Coffer with Beams, Tongue and Groove, Flat
Main Ceiling : 10'
Upper Ceiling Ft : 12'
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : CMU, 2x6 framing
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Storage Area
Wet Bar
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
More
Suited For Vacation Home
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
-
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
- Material Labels
- Foor-to-Floor Heights
- Roof Slope Indicators
-
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
- Door and Window Sizes
- Completely Dimensioned Floor Plan
- Room Labels and Interior Room Sizes
- Electrical Layouts
- Building Section Markers
- All Electrical Outlets, Fixtures, and Switching
- Floor and Deck Joist Size and Spacing
- Rough-in Plumbing Location (if applicable)
- Mechanical Equipment Locations (if applicable)
- Electrical Locations (if applicable)
-
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
- All Beam and Header Heights and Locations
- All Hips, Gables, Ridges and Valleys
- Building Section Markers
-
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
- Floor Joist Size and Spacing
- Floor-to-Floor Heights
- Non-Typical Plate Heights Indicated
-
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
- All Labels Indicating Wall Construction
- Foundation Wall Thickness and Reinforcing
- Insulation Type and Thickness
-
Miscellaneous Notes and Details
- Miscellaneous General Notes
- Stairway details (if applicable)
-
Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
Plan Set
$2142.85
$2142.85
$2142.85
Foundation
$0.00
Additional Options
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
