PLAN 1060-18
Photographs may show modified designs.
- Jump to:
- All (20)
- Floor plans (3)
Get Personalized Help
Get Cost To Build Report
Modify This Plan
Key Specs
4676
sq ft
7
Beds
4
Baths
2
Floors
2
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-18
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans

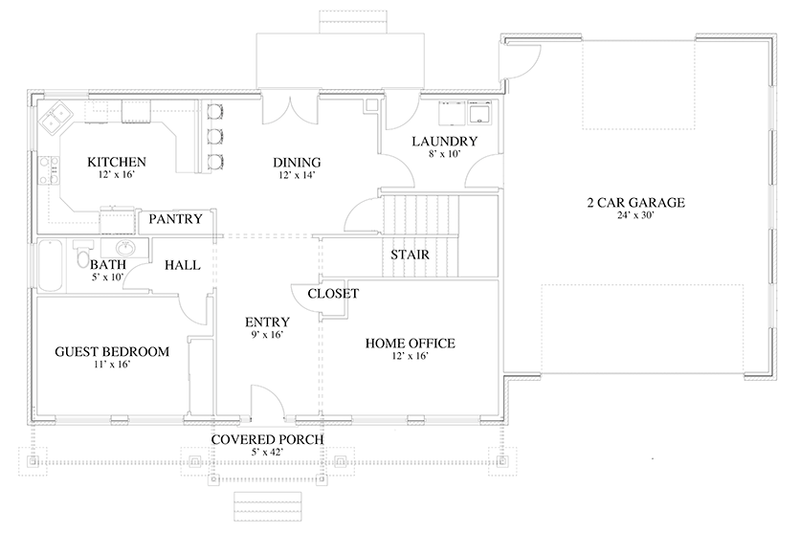

Floor Plan - Main Floor

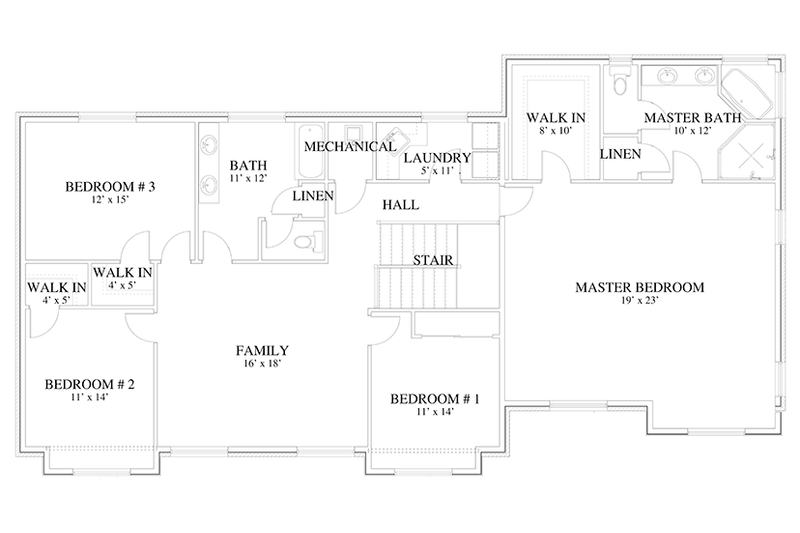

Floor Plan - Upper Floor

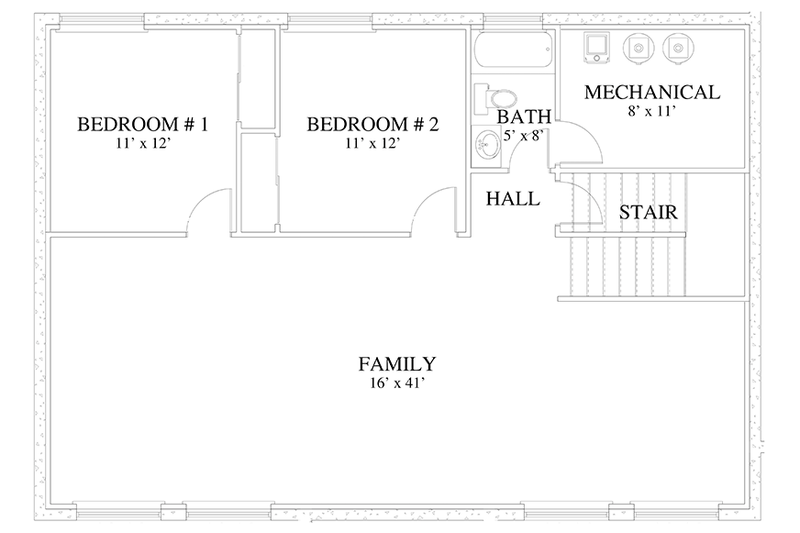

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 35'
Height: 30'
Width: 67'
Area
Basement Living: 1290 sq/ft height 8'
First Floor: 1290 sq/ft height 9'
Garage: 753 sq/ft
Second Floor: 2096 sq/ft height 8'
Roof
Primary Pitch: 8:12
Roof Framing: Truss
Roof Type: Asphalt
Secondary Pitch: 10:12
Exterior Wall Framing
Exterior Wall Finish: Brick/Siding
Framing: Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Mud Room
Upstairs Laundry
Rooms
Basement Family Room:
656 sq/ft width 41' x depth 16'
Bath 2:
50 sq/ft width 10' x depth 5'
Bath 3:
132 sq/ft width 11' x depth 12'
Bath 4:
40 sq/ft width 5' x depth 8'
Bedroom 1:
154 sq/ft width 11' x depth 14'
Bedroom 2:
154 sq/ft width 11' x depth 14'
Bedroom 2 Closet:
20 sq/ft width 5' x depth 4'
Bedroom 3:
180 sq/ft width 15' x depth 12'
Bedroom 3 Closet:
20 sq/ft width 5' x depth 4'
Bedroom 4:
132 sq/ft width 11' x depth 12'
Bedroom 5:
132 sq/ft width 11' x depth 12'
Covered Front Porch:
190 sq/ft width 42' x depth 5'
Dining Area:
168 sq/ft width 14' x depth 12'
Entry:
144 sq/ft width 9' x depth 16'
Garage:
753 sq/ft width 24' x depth 30'
Guest Suite:
144 sq/ft width 16' x depth 11'
Home Office:
192 sq/ft width 16' x depth 12'
Kitchen:
192 sq/ft width 16' x depth 12'
Laundry Room:
80 sq/ft width 10' x depth 8'
Laundry Room:
55 sq/ft width 11' x depth 5'
Master Bath:
120 sq/ft width 12' x depth 10'
Master Bedroom:
437 sq/ft width 23' x depth 19'
Master Closet:
80 sq/ft width 10' x depth 8'
Mechanical:
88 sq/ft width 11' x depth 8'
What's Included In This Plan Set
- Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

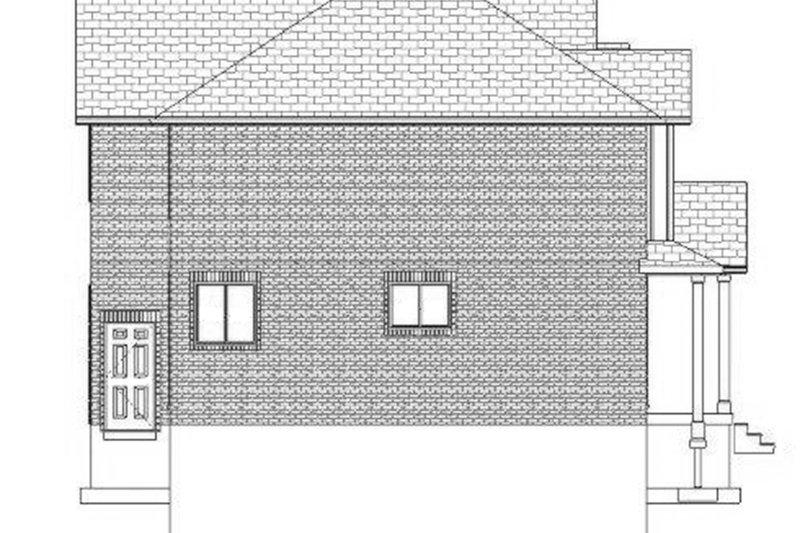

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
- Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
- Wall Section(s): Sectionals showing wall types and details.
- Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.
Plan Set
$1450.00
$1695.00
$1850.00
$1995.00
$2150.00
$2450.00
Foundation
$350.00
$350.00
Framing
$0.00
$250.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
