PLAN 1060-17
Photographs may show modified designs.
- Jump to:
- All (21)
- Floor plans (3)
Get Personalized Help
Get Cost To Build Report
Modify This Plan
Key Specs
3841
sq ft
7
Beds
4
Baths
2
Floors
2
Garages
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-17
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans

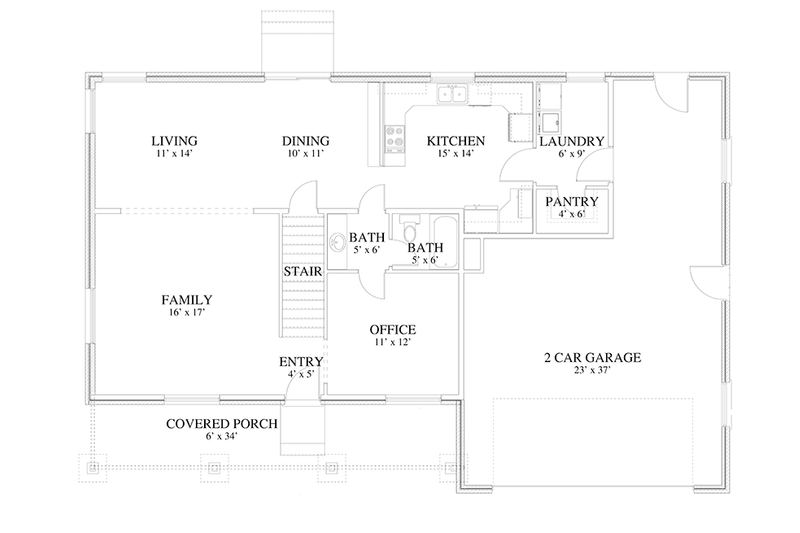

Floor Plan - Main Floor

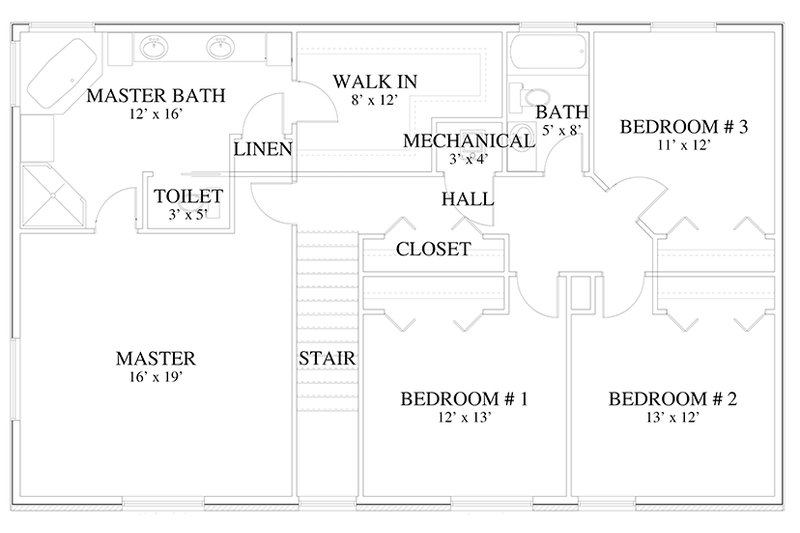

Floor Plan - Upper Floor

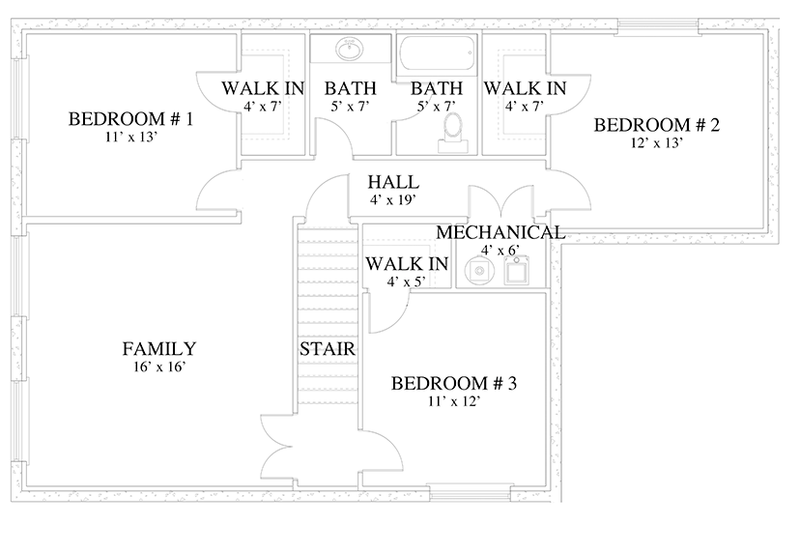

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth: 38'
Height: 26'
Width: 58' 2"
Area
Basement Living: 1214 sq/ft height 8'
First Floor: 1228 sq/ft height 8'
Garage: 715 sq/ft
Second Floor: 1399 sq/ft height 8'
Roof
Primary Pitch: 6:12
Roof Framing: Truss
Roof Type: Asphalt
Secondary Pitch: 4:12
Exterior Wall Framing
Exterior Wall Finish: Brick/Stucco
Framing: Wood - 2x6
Bedroom Features
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Workshop
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
Basement Family Room:
256 sq/ft width 16' x depth 16'
Basement Hall:
76 sq/ft width 19' x depth 4'
Basement Mechanical:
24 sq/ft width 6' x depth 4'
Bath 2:
50 sq/ft width 10' x depth 5'
Bath 3:
40 sq/ft width 5' x depth 8'
Bath 4:
70 sq/ft width 10' x depth 7'
Bedroom 1:
156 sq/ft width 12' x depth 13'
Bedroom 2:
156 sq/ft width 12' x depth 13'
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 4:
143 sq/ft width 13' x depth 11'
Bedroom 4 Closet:
28 sq/ft width 4' x depth 7'
Bedroom 5:
156 sq/ft width 13' x depth 12'
Bedroom 5 Closet:
28 sq/ft width 4' x depth 7'
Bedroom 6:
132 sq/ft width 11' x depth 12'
Covered Front Porch:
217 sq/ft
Covered Front Porch:
217 sq/ft width 34' x depth 6'
Dining Area:
110 sq/ft width 10' x depth 11'
Entry:
20 sq/ft width 4' x depth 5'
Family Room:
272 sq/ft width 16' x depth 17'
Garage:
715 sq/ft width 23' x depth 37'

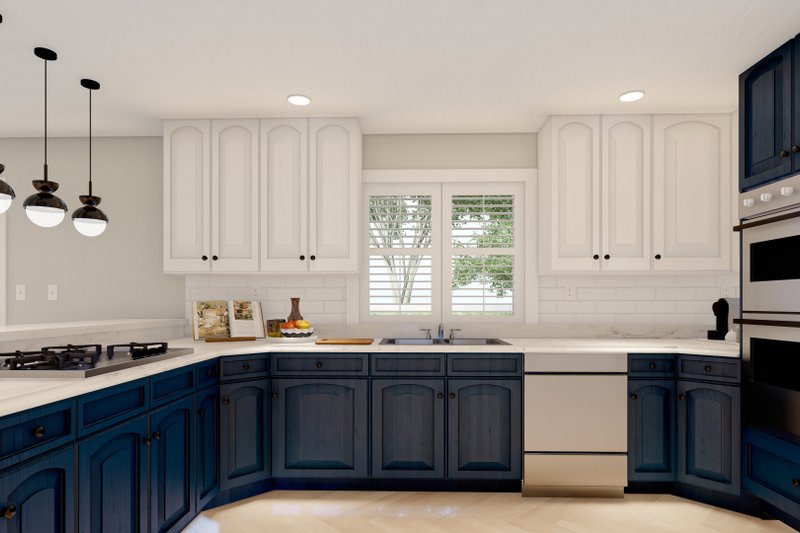

Kitchen:
210 sq/ft width 15' x depth 14'
Laundry Room:
54 sq/ft width 6' x depth 9'
Living Room:
154 sq/ft width 14' x depth 11'

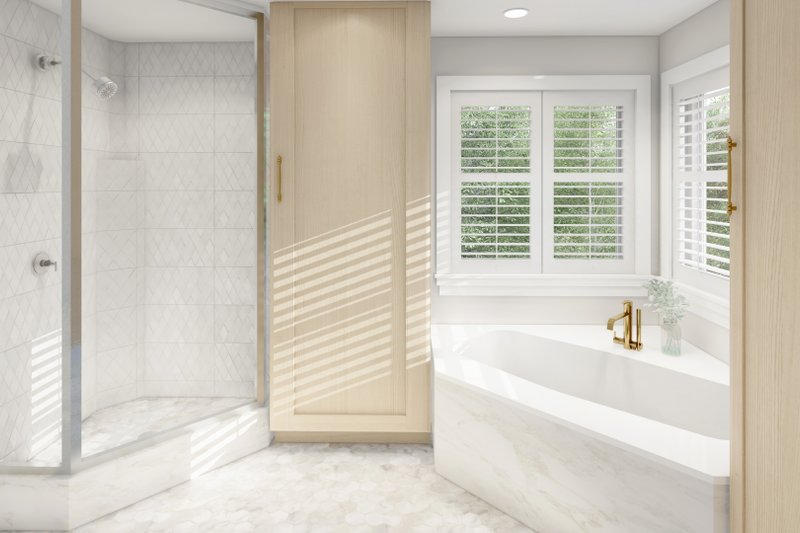

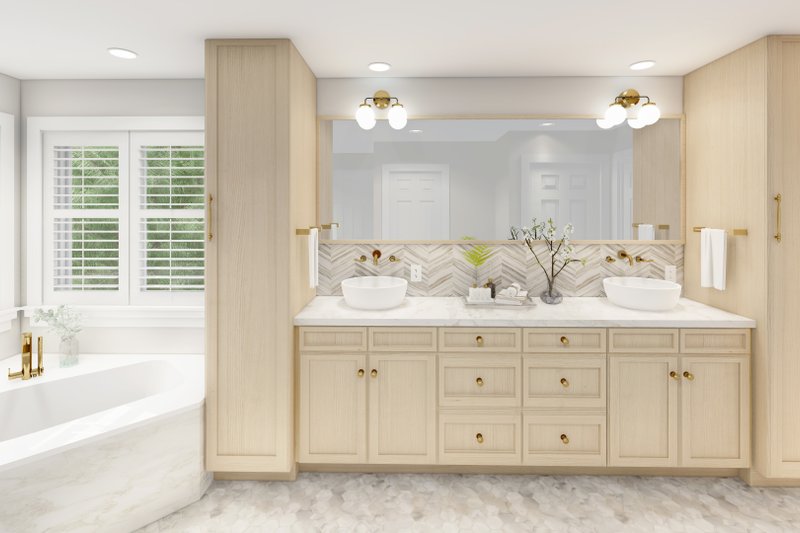

Master Bath:
192 sq/ft width 16' x depth 12'
Master Bedroom:
304 sq/ft width 16' x depth 19'
Master Closet:
96 sq/ft width 12' x depth 8'
Mechanical:
12 sq/ft width 3' x depth 4'
Office:
132 sq/ft width 12' x depth 11'
Pantry:
24 sq/ft width 6' x depth 4'
What's Included In This Plan Set
- Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

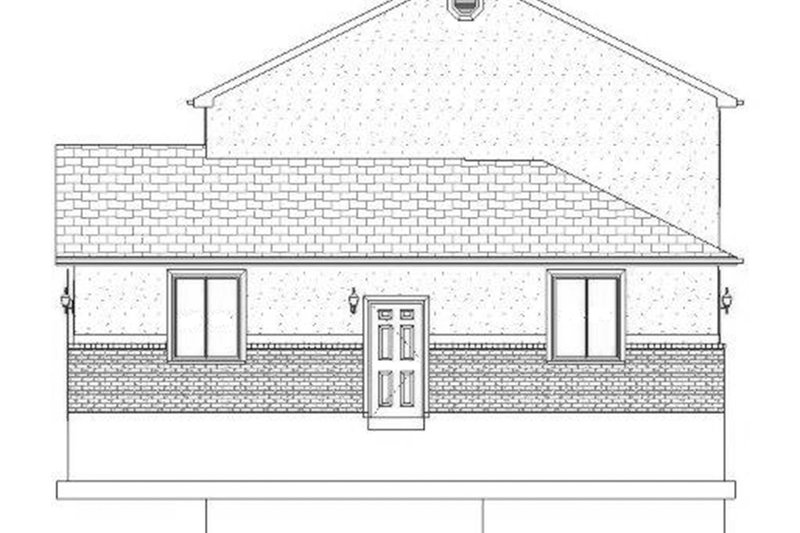

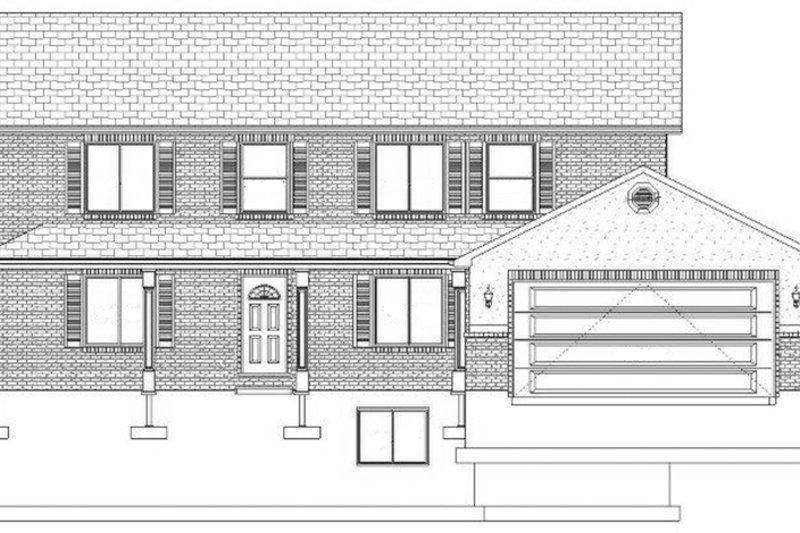

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
- Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
- Wall Section(s): Sectionals showing wall types and details.
- Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.
Plan Set
$1350.00
$1595.00
$1750.00
$1895.00
$2050.00
$2350.00
Foundation
$350.00
$350.00
Framing
$0.00
$250.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
