Full Specs & Features
Depth : 61' 10"
Height : 33'
Width : 74' 8"
First Floor: 2772 sq/ft height 10'
Second Floor: 933 sq/ft height 8'
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Formal Dining Room
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Covered Rear Porch
168 sq/ft width 13' 6" x depth 12' 6"
186 sq/ft width 14' 4" x depth 13'
132 sq/ft width 11' x depth 12'
192 sq/ft width 12' x depth 16'
217 sq/ft width 15' 6" x depth 14'
200 sq/ft width 12' 6" x depth 16'
302 sq/ft width 15' 6" x depth 19' 6"
206 sq/ft width 12' 6" x depth 16' 6"
341 sq/ft width 15' 6" x depth 22'
209 sq/ft width 16' 6" x depth 12' 8"
45 sq/ft width 8' 4" x depth 5' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

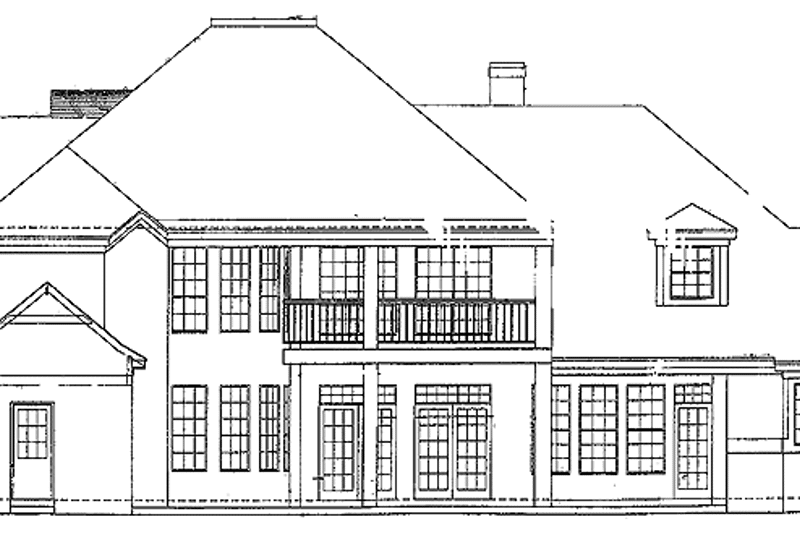

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

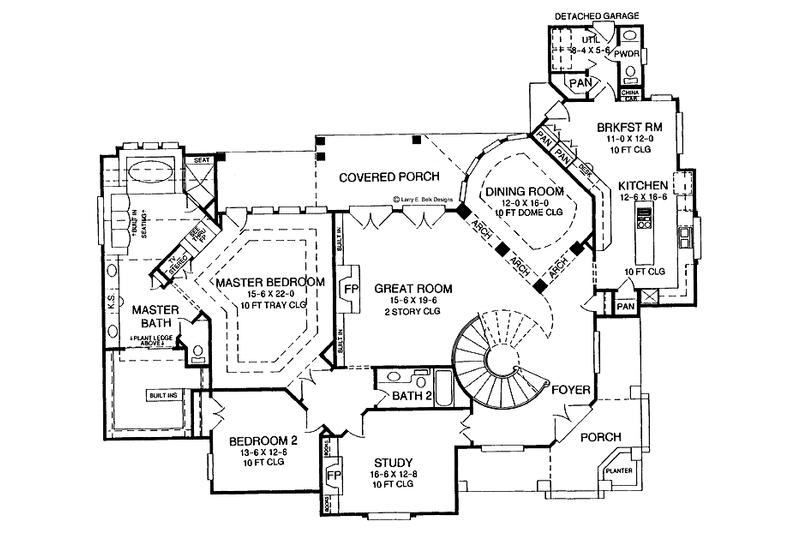

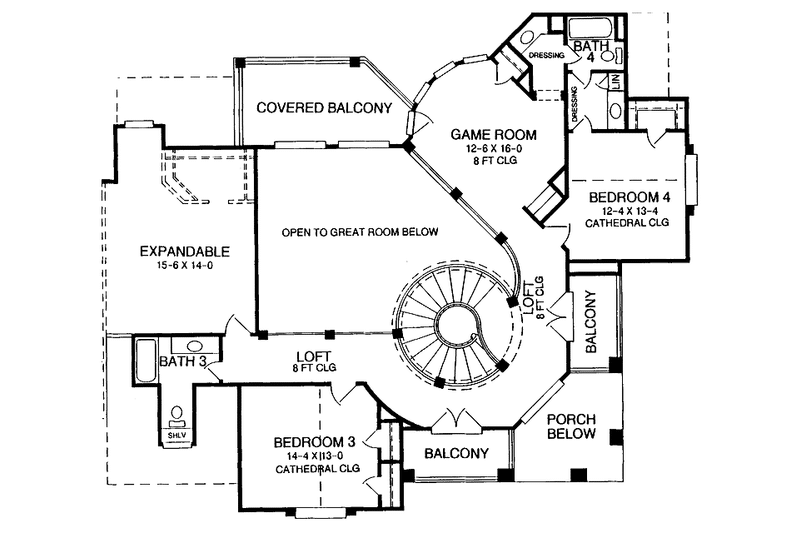

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
