Plan Description


Whoa, now that's some outdoor living! The lower level of this modern home opens out to a deck, while upstairs, a two-sided fireplace warms up another deck for cozy relaxation on chilly nights. Check out the master suite, too. This Northwest style home plan is also suited for a narrow lot.

Full Specs & Features


Dimension

Depth : 68'

Height : 27' 9"

Width : 40'

Area

Decks : 499 sq/ft

Garage : 589 sq/ft

Main Floor : 1427 sq/ft

Porch : 120 sq/ft

Upper Floor : 1888 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry foyer ceiling is open to above.

Garage Ceiling : 11' 6"

Main Ceiling : 9'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 4/12

Roof Framing : Trusses

Roof Load : 25 PSF

Roof Type : Hip

Exterior Wall Framing

Exterior Wall Finish : Siding, Stone and Hardie Panels

Framing : 2X6

Insulation : R21

Bedroom Features

Main Floor Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Garage Features

Front Entry Garage

Tandem Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Cover Sheet: 3D Rendering and Project Information.
  • General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).

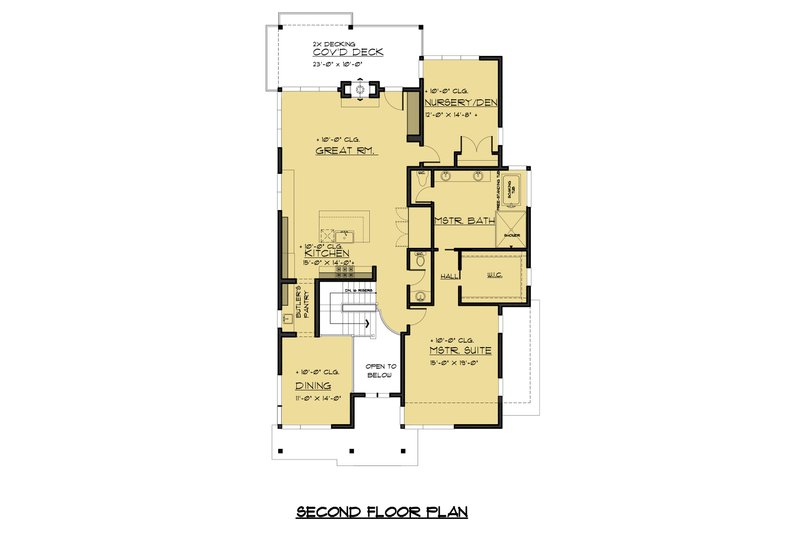

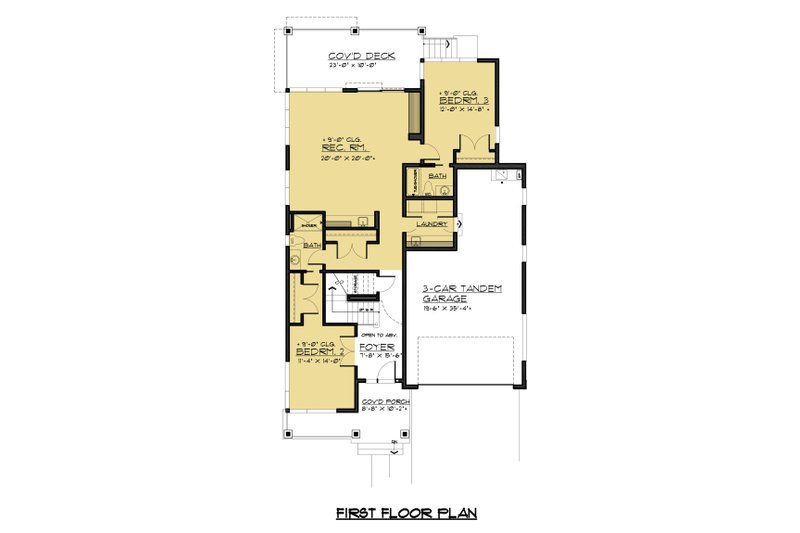

  • Floor Plans (lower, main, upper, etc.) showing all doors and windows.

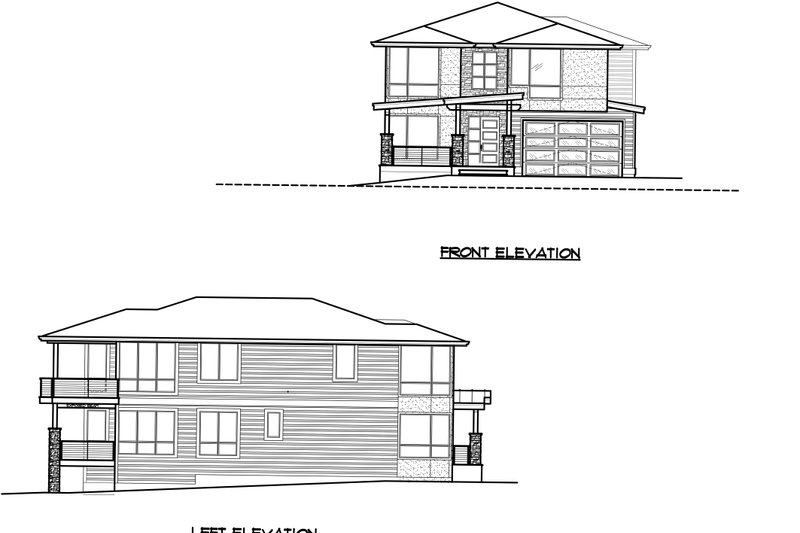

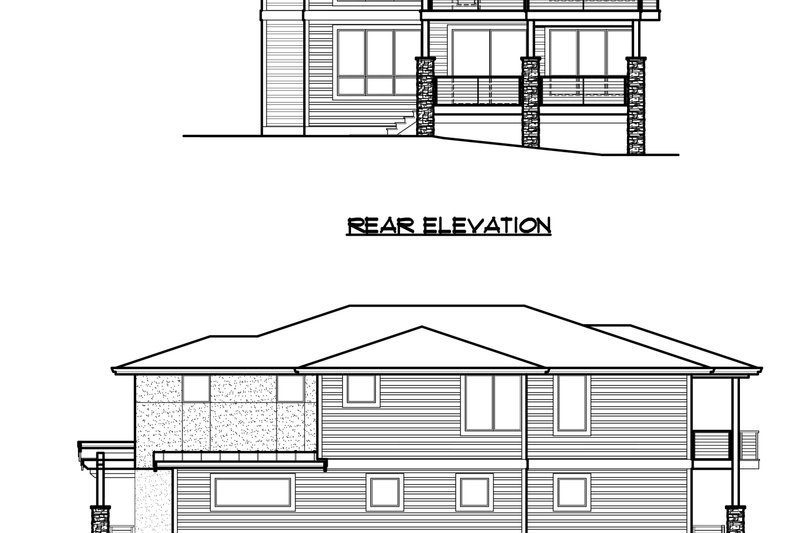

  • Elevations from all four sides showing material callouts.
  • Wall framing and sectional detail sheets.
  • Building Cross Sections showing stair and ceiling height details.
  • Window and Door schedule.
  • Overhead roof plan showing peaks, valleys, and pitch.
  • Foundation Plan showing perimeter and footing details.
  • Misc. notes and details.
  • *Please note that any structural engineering sheets included with this plan set are for reference only.

» See important information before purchasing.
