PLAN 455-507
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description

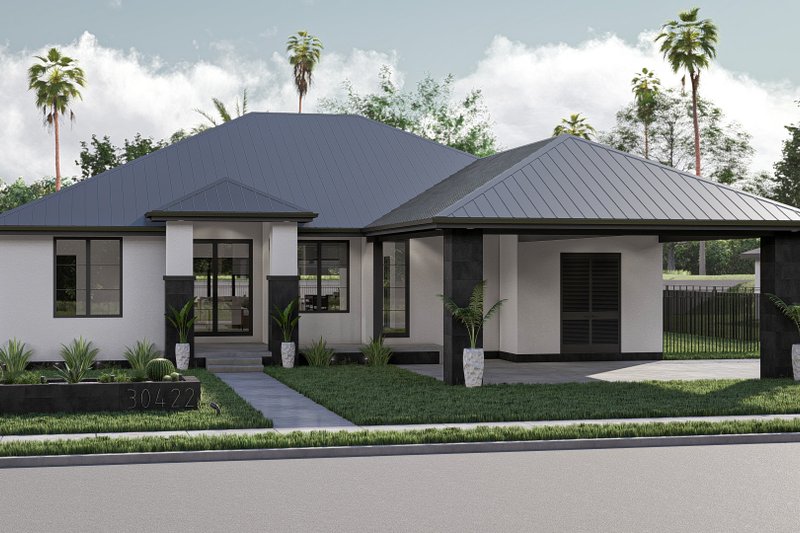

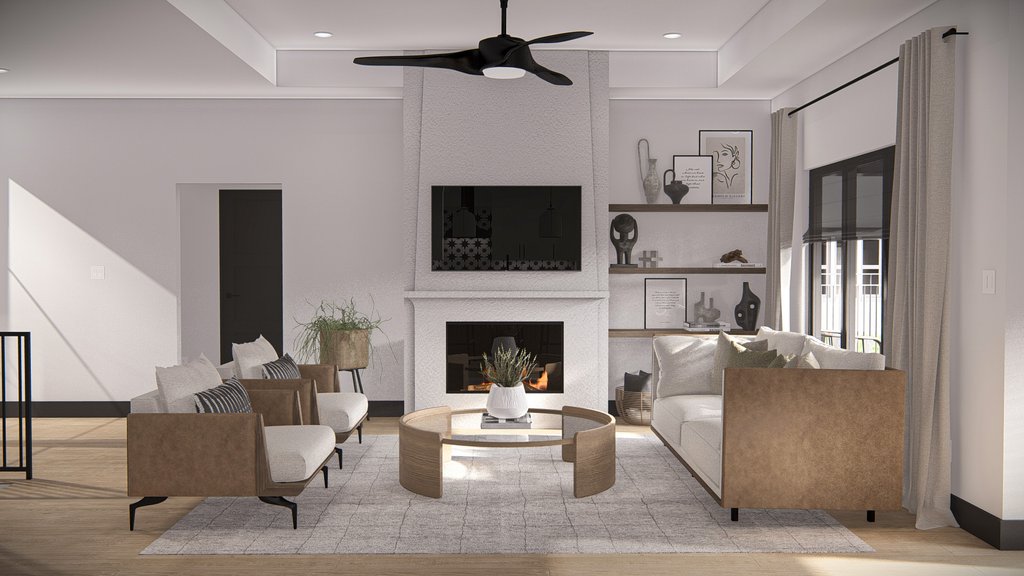

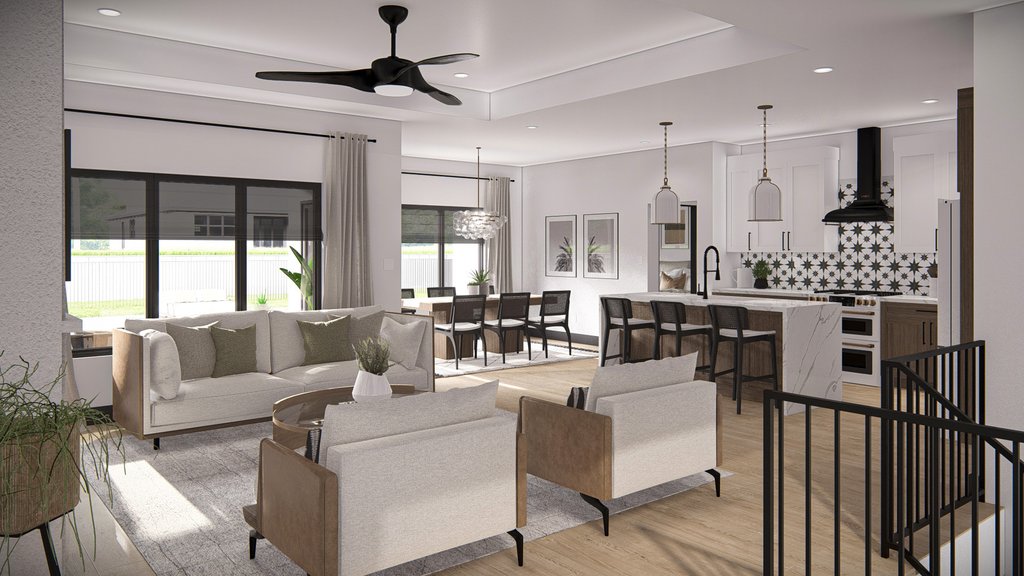

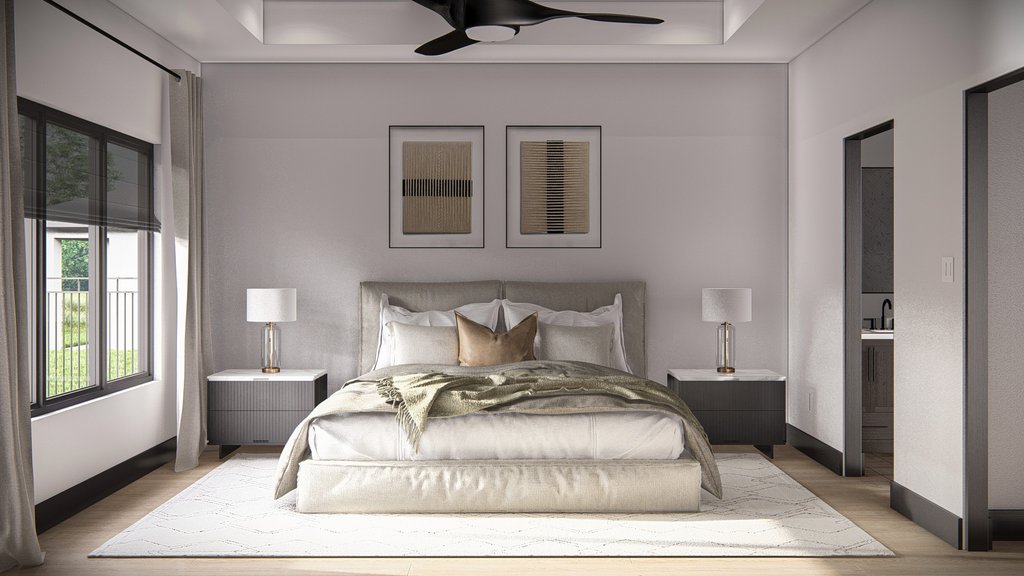

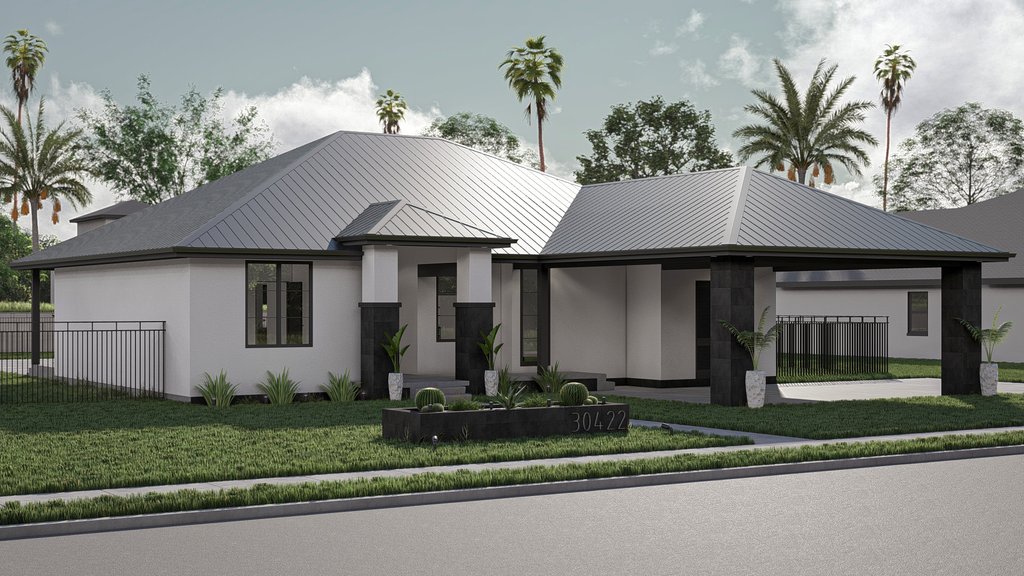

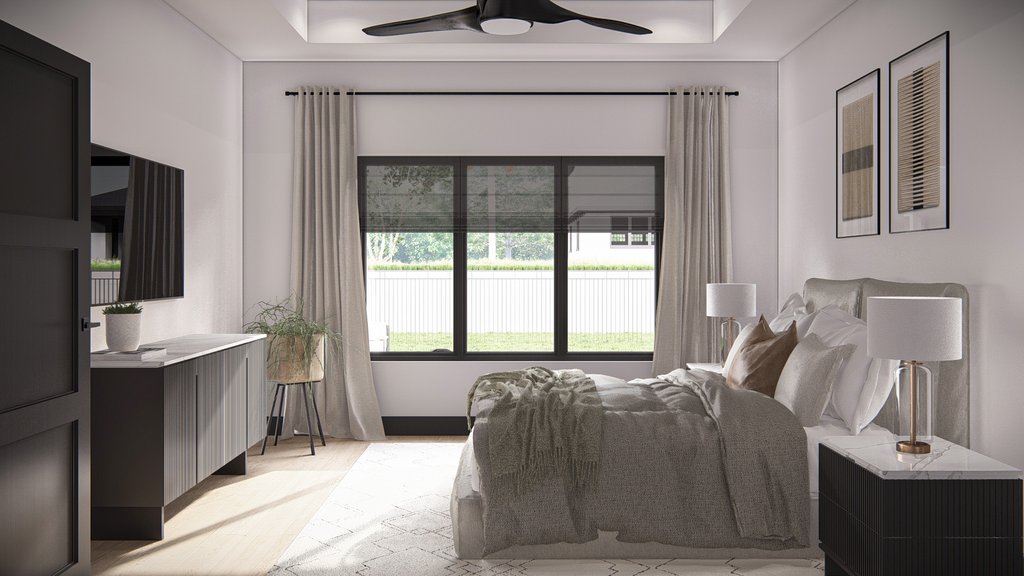

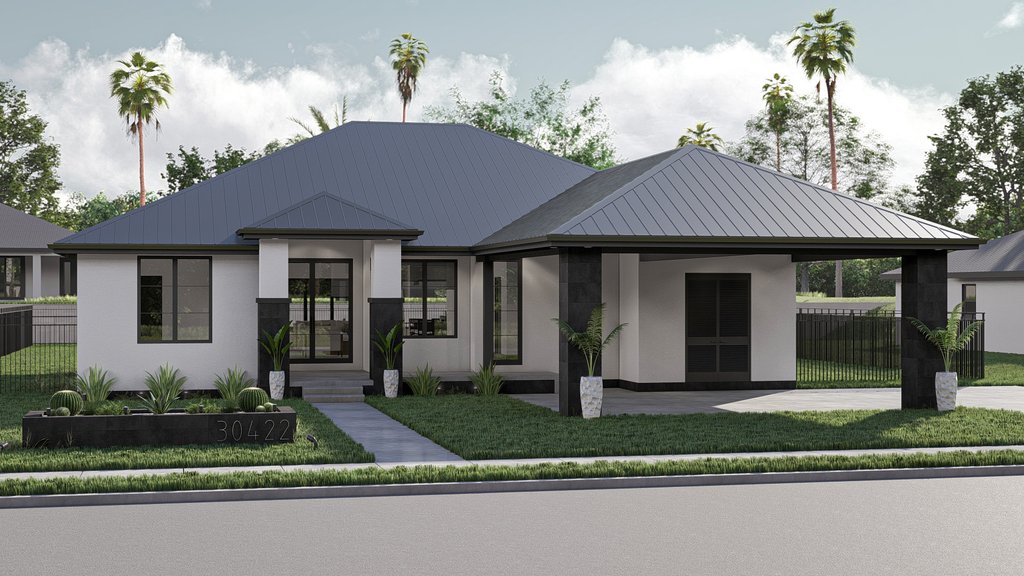

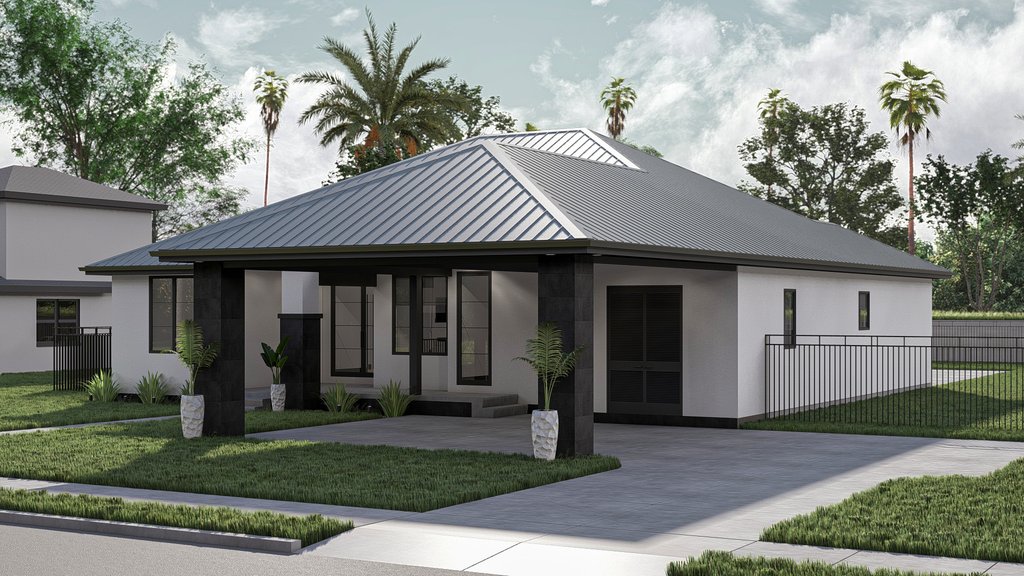

Welcome to your dream ranch-style house, where modern design meets contemporary charm. As you drive up the sleek lines of the stucco siding catch your eye. The standing seam metal roofing gleams under the sun, promising durability and low maintenance for years to come. Stepping out of your car, you're greeted by the spacious carport, providing shelter for your vehicles and convenient storage for outdoor gear, keeping everything organized and easily accessible. As you approach the front door, the covered porch beckons you to sit and relax, perhaps with a morning coffee or an evening cocktail, while soaking in the tranquil surroundings. Upon entering, you're enveloped by the warmth of the open-concept main area. The expansive living room features a stunning fireplace, perfect for cozy nights spent with loved ones, creating memories that will last a lifetime. The gourmet kitchen boast ample counter space, and a center island, inviting you to unleash your culinary creativity. Whether you're hosting a dinner party or simply preparing a meal for your family, this kitchen is sure to inspire. The main suite is your own private retreat, offering a peaceful sanctuary after a long day. With its spacious layout and luxurious ensuite bathroom, complete with a spa-like soaking tub and walk-in shower, relaxation is always within reach. Two additional bedrooms provide plenty of space for family or guests, each thoughtfully designed with comfort and style in mind. And with a second full bathroom, morning routines are a breeze for everyone. This modern ranch-style house is more than just a home—it's a lifestyle. With its seamless blend of modern design and contemporary charm, it offers the perfect balance of comfort, convenience, and natural beauty. Welcome home.
Read More
Floor Plans

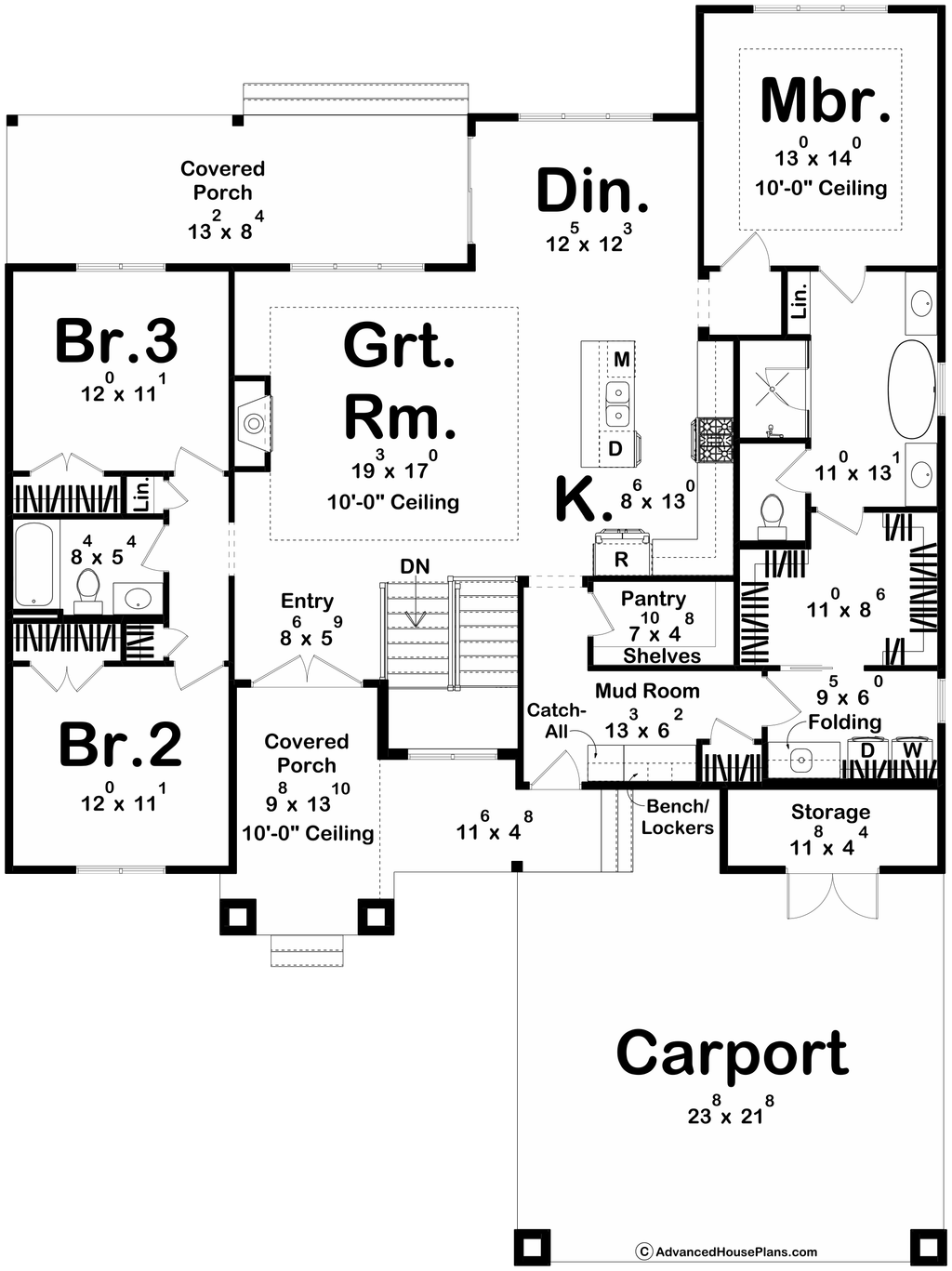

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 69' 8"
Height : 20' 1"
Width : 52'
Area
Main Floor : 1810 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : The covered porch, great room, and master bedroom feature 10 foot tall ceilings.
Main Ceiling : 9'
Roof
Primary Pitch : 6/12
Roof Framing : Stick
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Carport Porte Cochere
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-877-803-2251
Plan Set
PDF Set:
$1274.15
$1274.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1524.90
$1524.90
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1783.30
$1783.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2123.30
$2123.30
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$254.15
$254.15
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$254.15
$254.15
Ideal for level lot, single layer concrete poured directly on grade.
Walk Out Basement:
$254.15
$254.15
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$254.15
$254.15
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$254.15
$254.15
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.15
$50.15
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$254.15
$254.15
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
