PLAN 42-367

Key Specs


1604
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.

Floor Plans

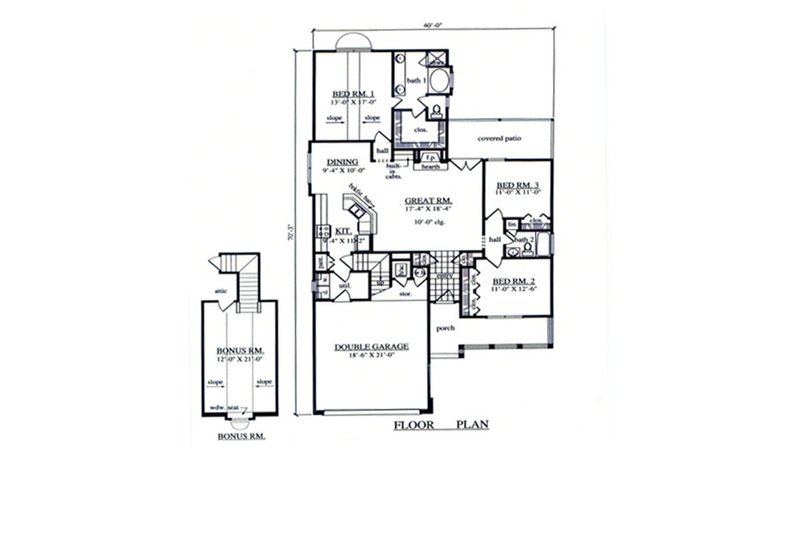

Floor Plan - Main Floor Plan
Reverse
Country Floor Plan - Main Floor Plan Plan #42-367

Full Specs & Features


Dimension
Depth : 70' 3"
Height : 24'
Width : 40'
Area
Bonus: 285 sq/ft height 8'
First Floor: 1604 sq/ft height 8'
Garage: 454 sq/ft
Patio: 137 sq/ft
Porch: 148 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Great Rm. has 11'-0" clg.Bed Rm. 1 ceiling slopes up to 10'-0"
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone and Siding
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Play Flex Room
Storage Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

137 sq/ft width 11' x depth 12' 6"

Bedroom 2 Closet:

18 sq/ft width 2' x depth 9'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 3 Closet:

9 sq/ft width 2' x depth 4' 6"

Bonus Room - Unfinished:

252 sq/ft width 12' x depth 21'

Breakfast Room:

93 sq/ft width 9' 4" x depth 10'

Foyer:

45 sq/ft width 5' x depth 9'

Garage:

388 sq/ft width 18' 6" x depth 21'

Garage Storage:

40 sq/ft width 4' x depth 10'

Gathering Room:

317 sq/ft width 17' 4" x depth 18' 4"

Hall:

36 sq/ft width 3' 4" x depth 11'

Hall Bathroom:

40 sq/ft width 5' x depth 8'

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

104 sq/ft width 9' 4" x depth 11' 2"

Laundry Room:

46 sq/ft width 5' 2" x depth 9'

Master Bathroom:

142 sq/ft width 10' 8" x depth 13' 4"

Master Bedroom:

221 sq/ft width 13' x depth 17'

Master Closet:

80 sq/ft width 7' 6" x depth 10' 8"

Porch - Front:

114 sq/ft width 6' x depth 19'

Porch - Rear:

144 sq/ft width 8' x depth 18'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

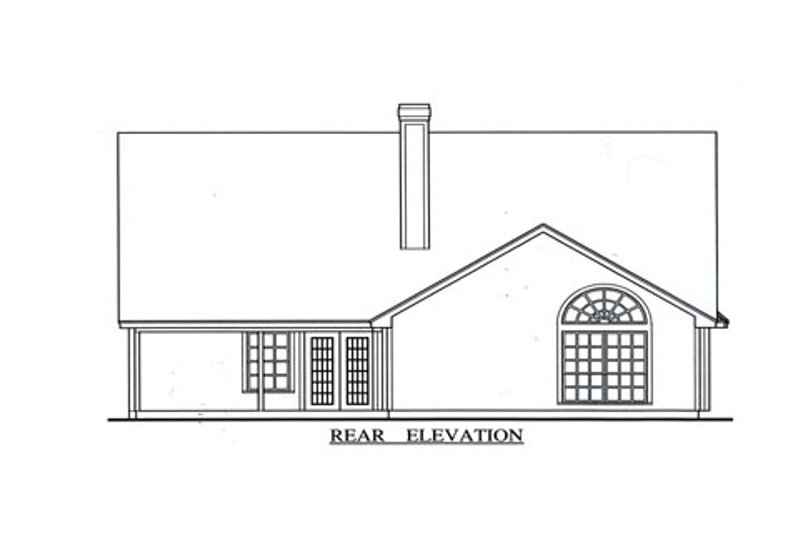

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$625.00
5 printed plan sets mailed to you.
8 Copy Set :
$725.00
8 printed plan sets mailed to you.
PDF Set :
$725.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$725.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set :
$545.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$0.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
