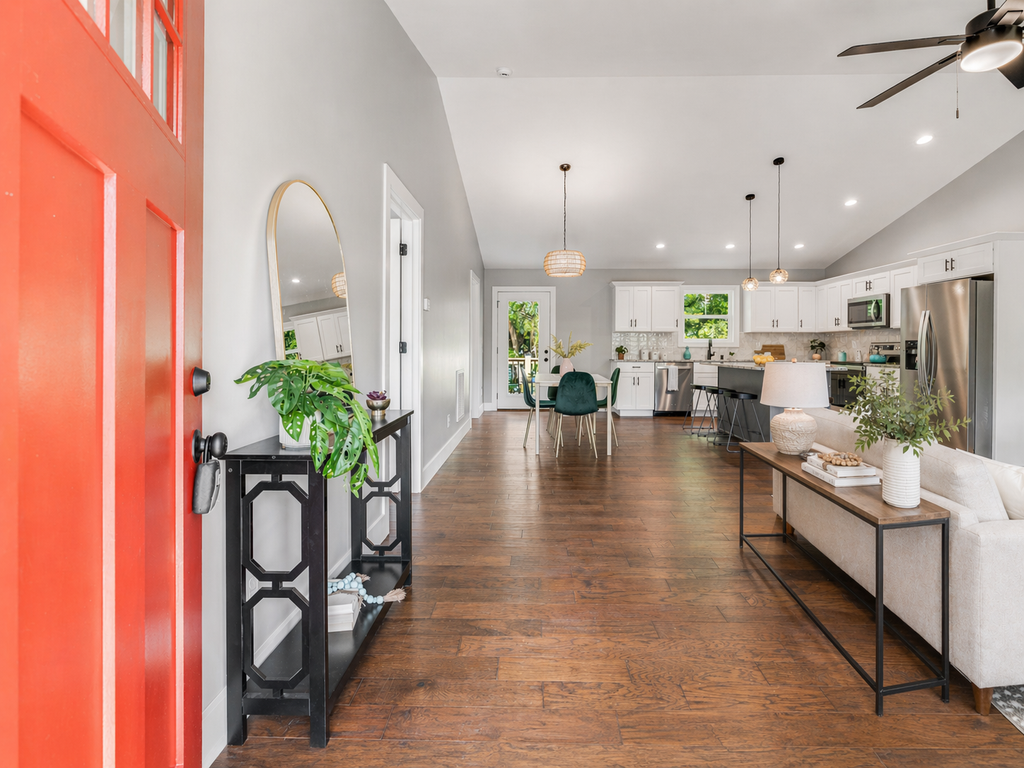

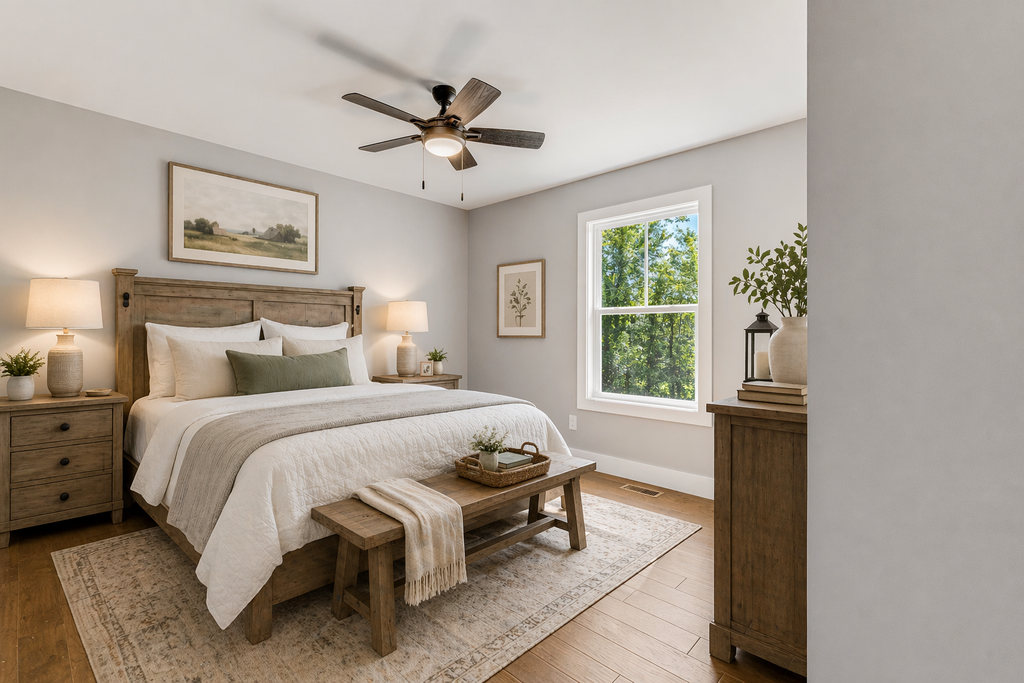

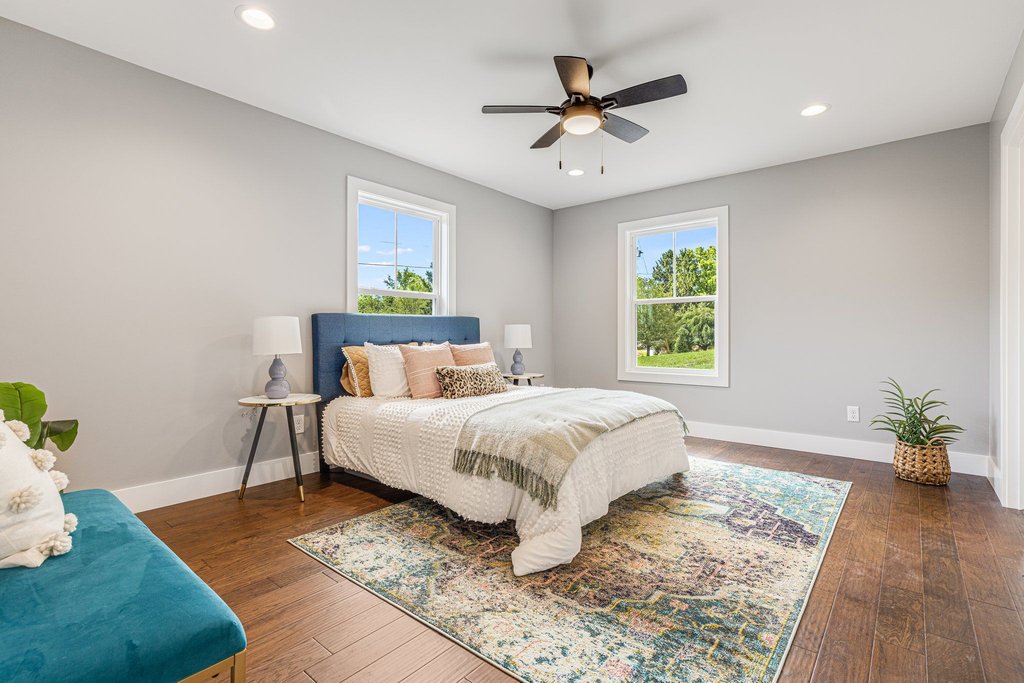

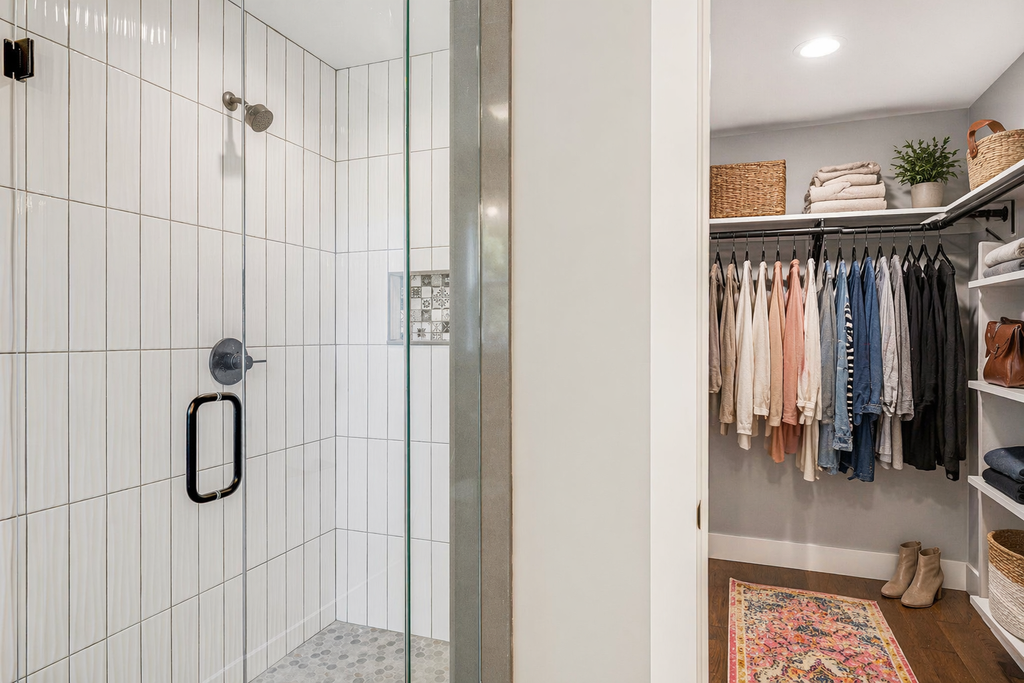

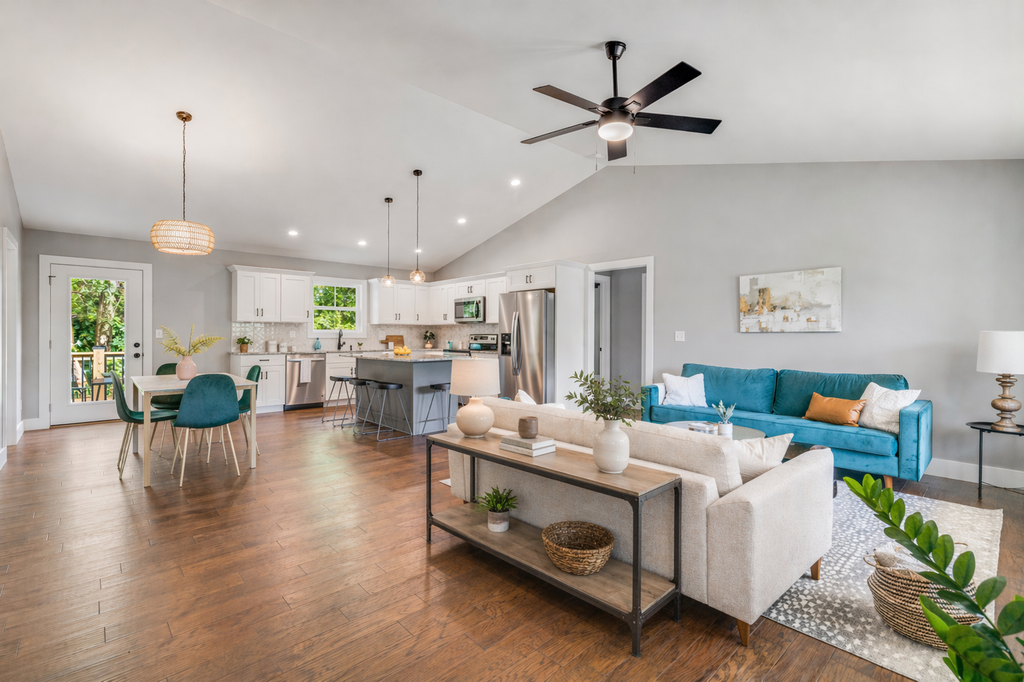

Cute Split layout - open floor plan! The Great Room, Kitchen, and Dining Area are open front to back, which makes this plan look larger! The Kitchen has a large island with counter high snack bar and plenty of cabinets for storage. The Master Bedroom is large and has a lovely Master Bath with dual sinks, custom shower and access to the walk-in closet. The Laundry Room has a coat closet, washer/dryer area and a pantry closet for plenty of storage. Bedrooms 2 and 3 share a full bath.
Full Specs & Features
Depth : 42' 6"
Height : 20'
Width : 50'
Main Floor : 1425 sq/ft
Porch : 308 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8/12
Roof Framing : truss
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2 x 6
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Economical To Build
Suited For Vacation Home
Energy Efficient Features
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
