Full Specs & Features
Depth : 46'
Height : 18'
Width : 50'
Basement Unfinished: 1110 sq/ft height 8'

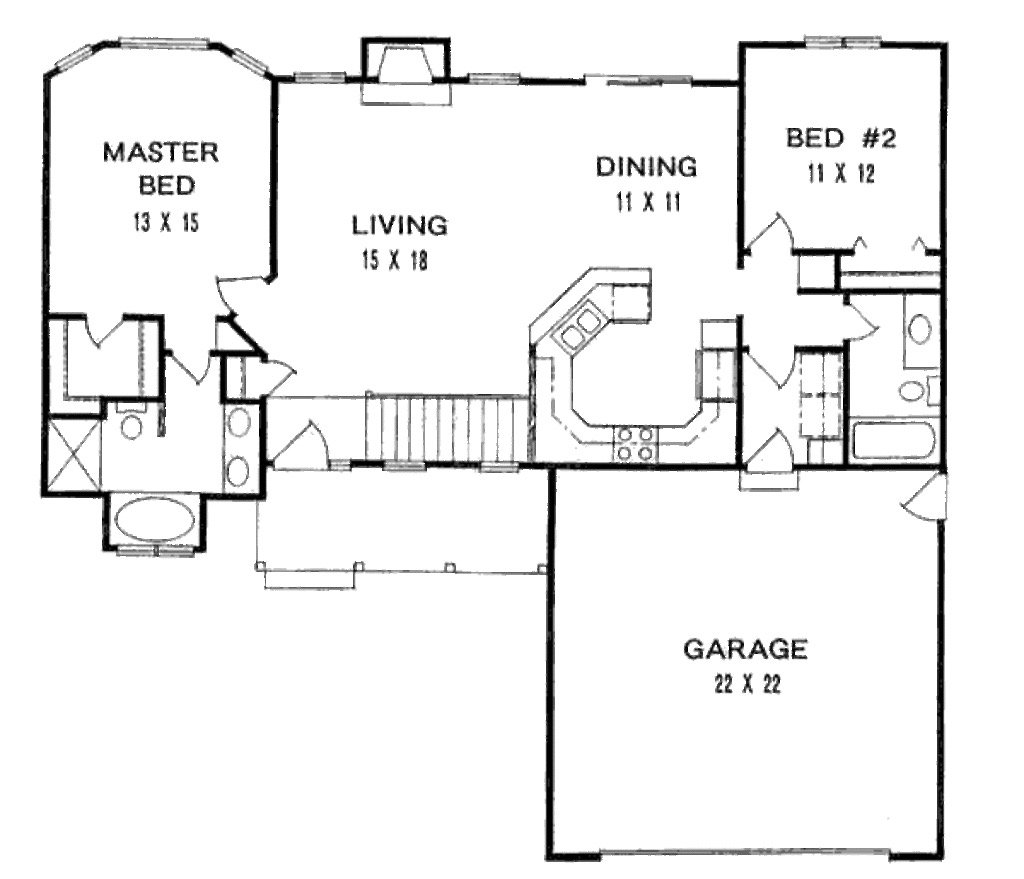

First Floor: 1179 sq/ft height 8'
Garage: 484 sq/ft height 8'
Main Ceiling : 8'
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Walk In Closet
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
132 sq/ft width 11' x depth 12'
121 sq/ft width 11' x depth 11'
96 sq/ft width 16' x depth 6'
484 sq/ft width 22' x depth 22'
110 sq/ft width 11' x depth 10'
270 sq/ft width 15' x depth 18'
60 sq/ft width 12' x depth 5'
195 sq/ft width 13' x depth 15'
34 sq/ft width 6' x depth 5' 6"
34 sq/ft width 5' 9" x depth 5' 10"
What's Included In This Plan Set
- 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
- 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
- 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
- Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
- Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
- Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
- Building Cross Section - Complete front to back cross section with basic framing details.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
