PLAN 84-657
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 37'
Height : 16' 6"
Width : 50' 8"
Area
First Floor: 1124 sq/ft height 9'
Garage: 449 sq/ft height 8'
Porch: 22 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
103 sq/ft width 10' x depth 10' 4"
Dining Room:
144 sq/ft width 10' 10" x depth 13' 4"
Family Room:
182 sq/ft width 13' x depth 14'
Garage:
400 sq/ft width 20' x depth 20'
Kitchen:
92 sq/ft width 8' x depth 11' 6"
Master Bedroom:
166 sq/ft width 12' 6" x depth 13' 4"
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

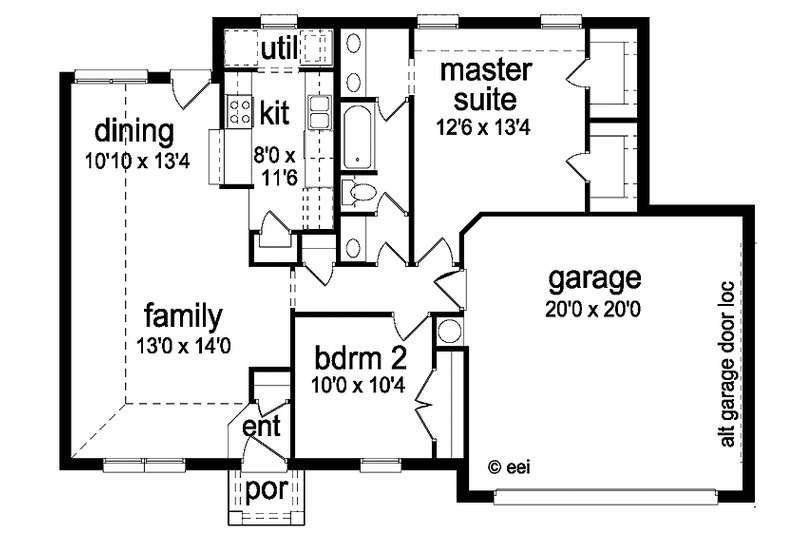

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

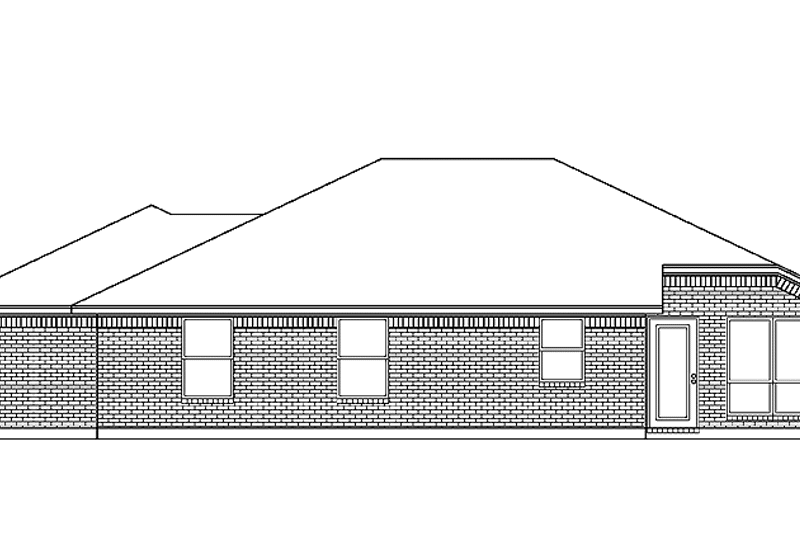

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$637.50
$680.00
$765.00
$765.00
$1190.00
$531.25
Foundation
$0.00
Framing
$0.00
Additional Options
$170.00
$42.50
$85.00
$33.15
$85.00
$63.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
