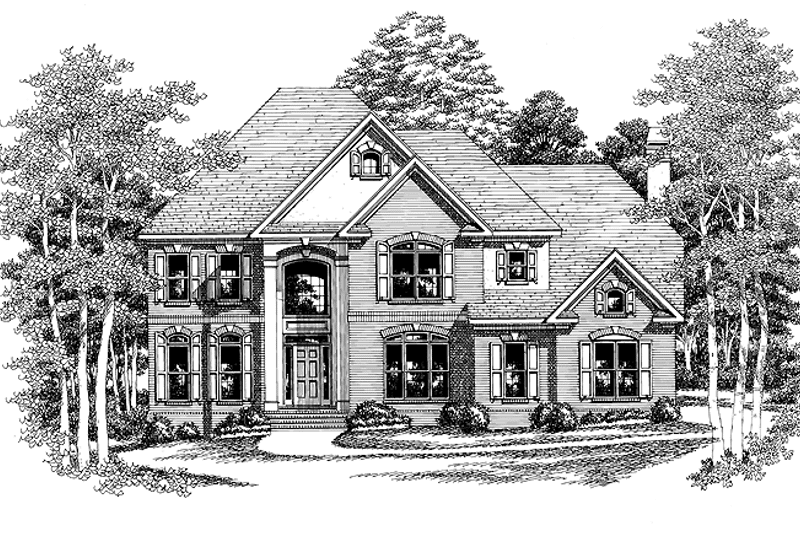

PLAN 927-74
Photographs may show modified designs.
Key Specs
2793
sq ft
5
Beds
3
Baths
2
Floors
2
Garages
Wow! Cost to Build Reports Only $4.99 with Code CTBHOLIDAY (Limit 1)
This report will provide you cost estimates based on location and building materials.
Phone: 1-877-803-2251
See our Terms & Conditions and Privacy Policy.
PLAN 927-74
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-803-2251 for assistance.
Modify This PlanPlan Description
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

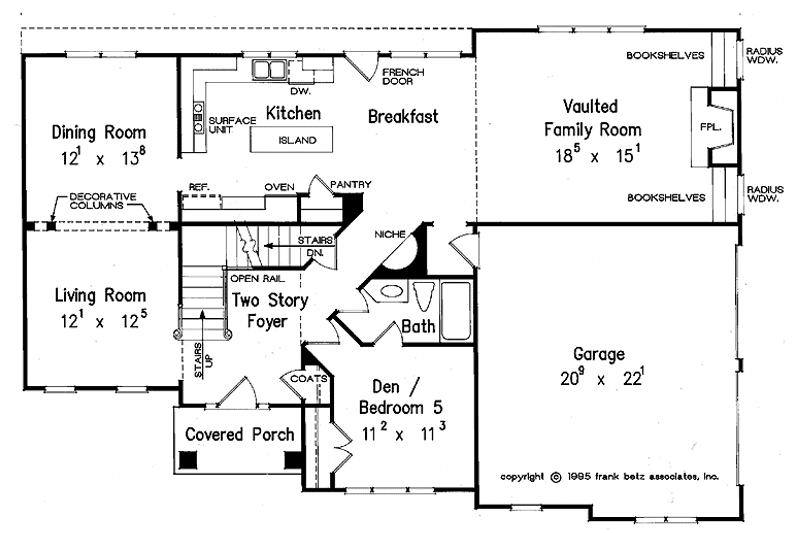

Floor Plan - Main Floor
BUILDER Advantage Program
PRO BUILDERS:
Join the club and save 5% on your first order plus exclusive discounts and more.
Click to Get Your Trend Report

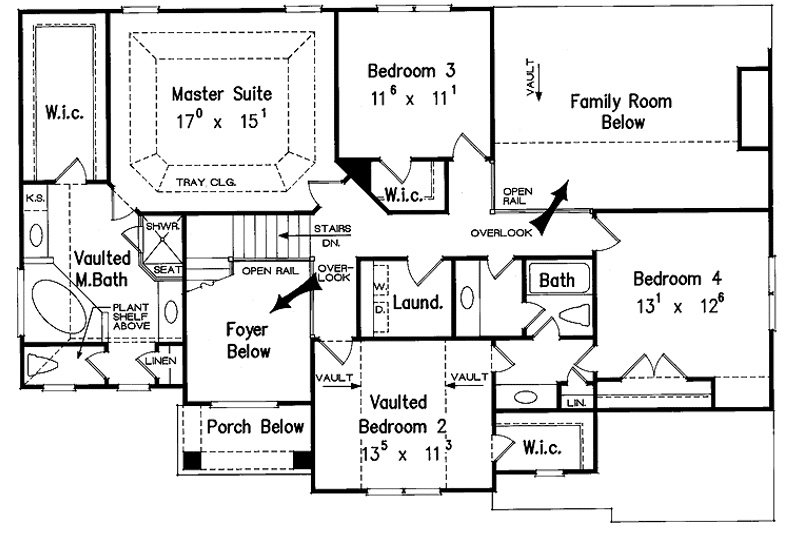

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 39'
Height : 34' 8"
Width : 57'
Area
Basement Unfinished: 1413 sq/ft
First Floor: 1413 sq/ft height 9'
Garage: 482 sq/ft
Second Floor: 1380 sq/ft height 8'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
20 sq/ft width 5' 6" x depth 3' 8"
Bedroom 2:
150 sq/ft width 13' 5" x depth 11' 3"
Bedroom 2 Closet:
31 sq/ft width 7' 4" x depth 4' 4"
Bedroom 3:
127 sq/ft width 11' 6" x depth 11' 1"
Bedroom 3 Closet:
31 sq/ft width 7' 4" x depth 4' 4"
Bedroom 4:
163 sq/ft width 13' 1" x depth 12' 6"
Bedroom 4 Closet:
19 sq/ft width 2' 3" x depth 8' 7"
Bedroom 5:
125 sq/ft width 11' 2" x depth 11' 3"
Breakfast Room:
143 sq/ft width 11' x depth 13'
Family Room:
277 sq/ft width 18' 5" x depth 15' 1"
Foyer:
98 sq/ft width 9' 4" x depth 10' 7"
Garage:
458 sq/ft width 20' 9" x depth 22' 1"
Kitchen:
157 sq/ft width 12' 1" x depth 13'
Laundry Room:
39 sq/ft width 6' 11" x depth 5' 9"
Living Room:
150 sq/ft width 12' 1" x depth 12' 5"
Master Bathroom:
144 sq/ft width 12' x depth 12'
Master Bedroom:
256 sq/ft width 17' x depth 15' 1"
Master Closet:
79 sq/ft width 6' 4" x depth 12' 7"
Porch - Front:
46 sq/ft width 9' 9" x depth 4' 9"
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$1440.75
$1678.75
$1695.75
$1933.75
$2800.75
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$212.50
$85.00
$33.15
$85.00
$72.25
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
